Inverter Driver

Driver inverter compressor
Download

NEW GENERATION Driver Features

for best operation and full effectiveness of inverter compressors

     SCI driver is well-developed to support large capacity up to 22kW, available in 2 heat exchanging systems; liquid cooling and air cooling. Our driver offers longer lifetime and higher safety standard making it one of the worthiest in the market.

intelligent RS485 protocol

     It can be programmed tp match with user controller and there is no need for new software development

perfectly matching with sci compressor

oil recovery and function

direct heat motor compressor

compressor's envelop control

worldwide safety standard

high reliability

high efficiency > 95%

Products

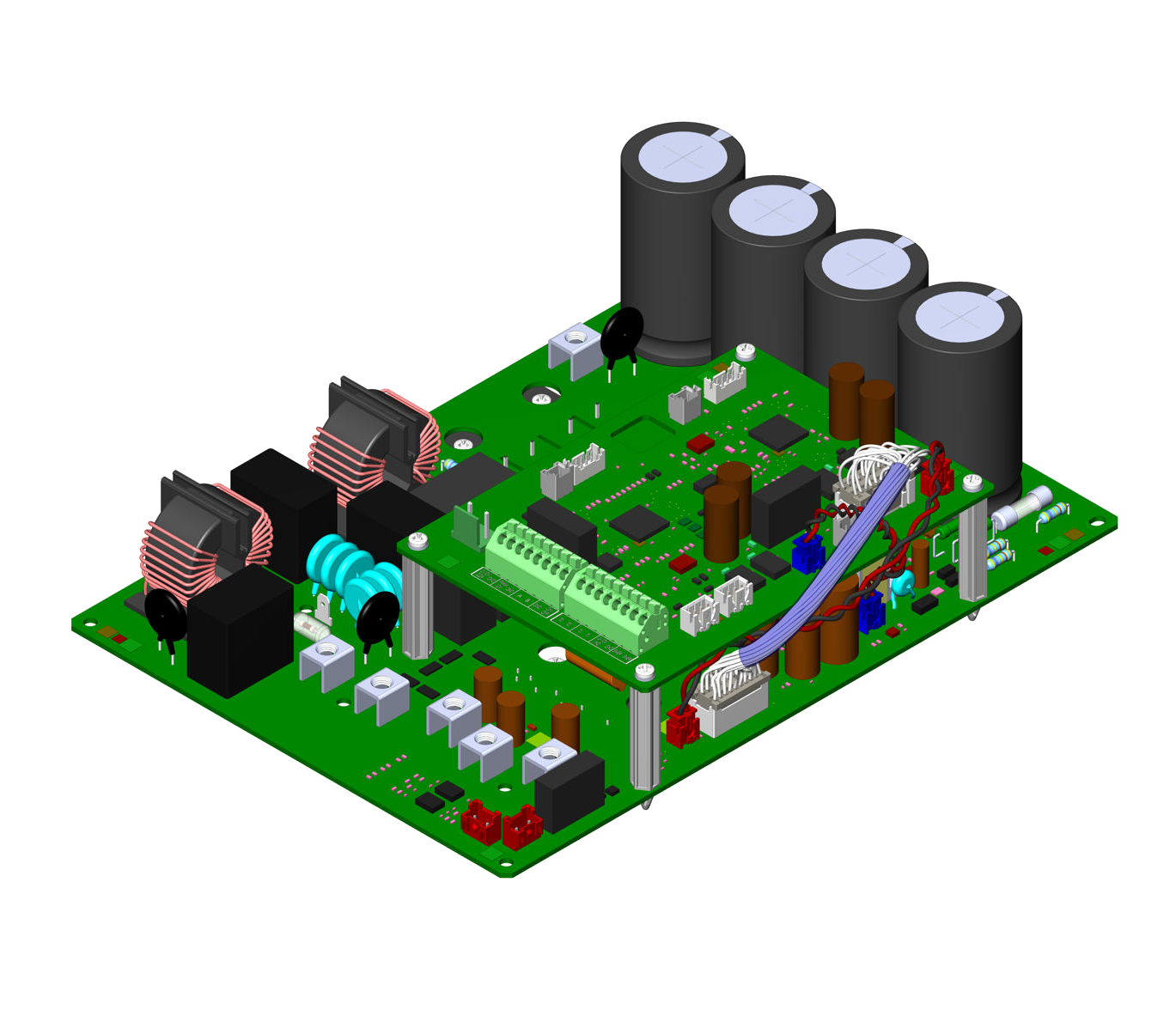

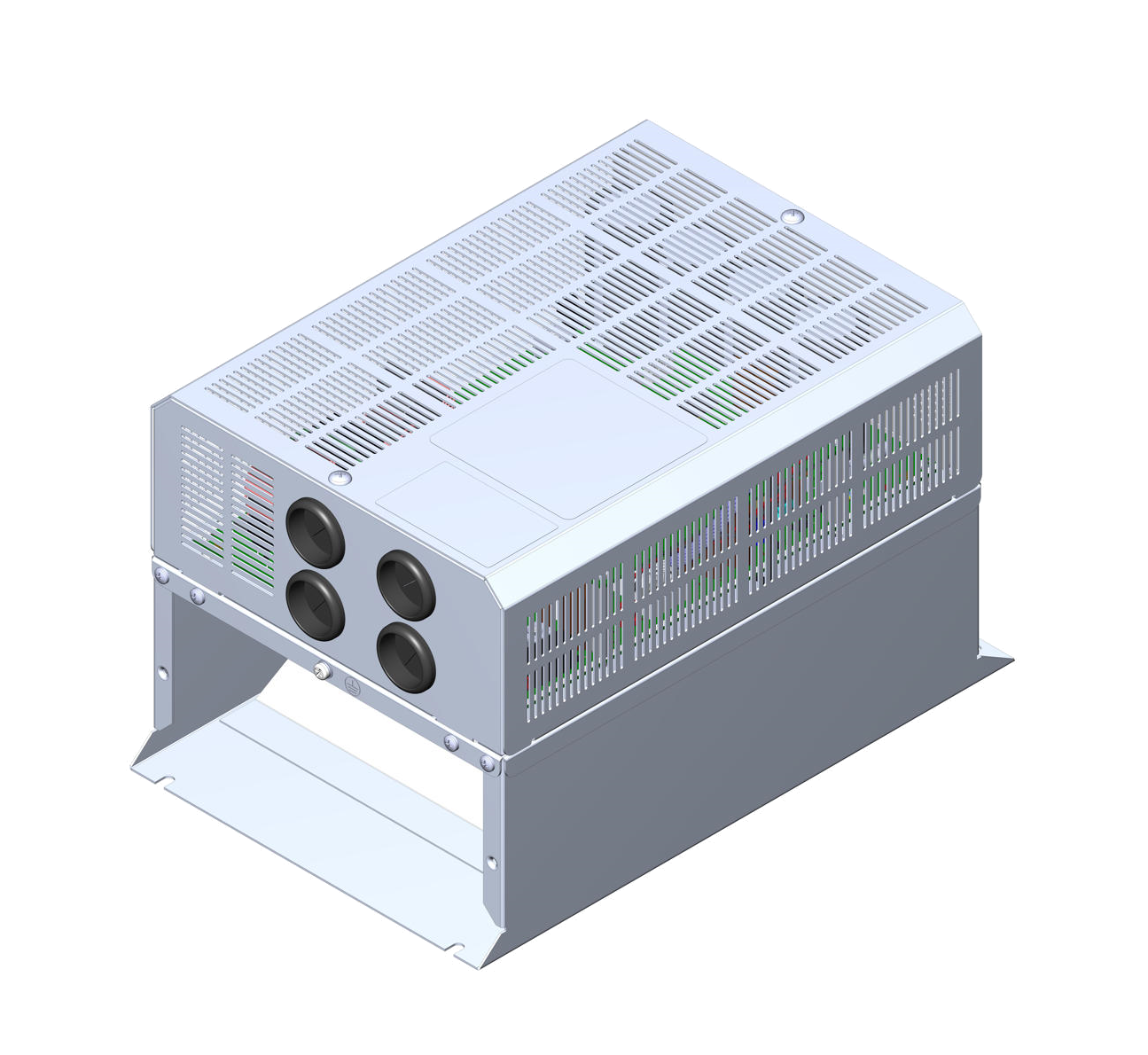

    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A
    • Driver inverter model SDP-042P*230 type A

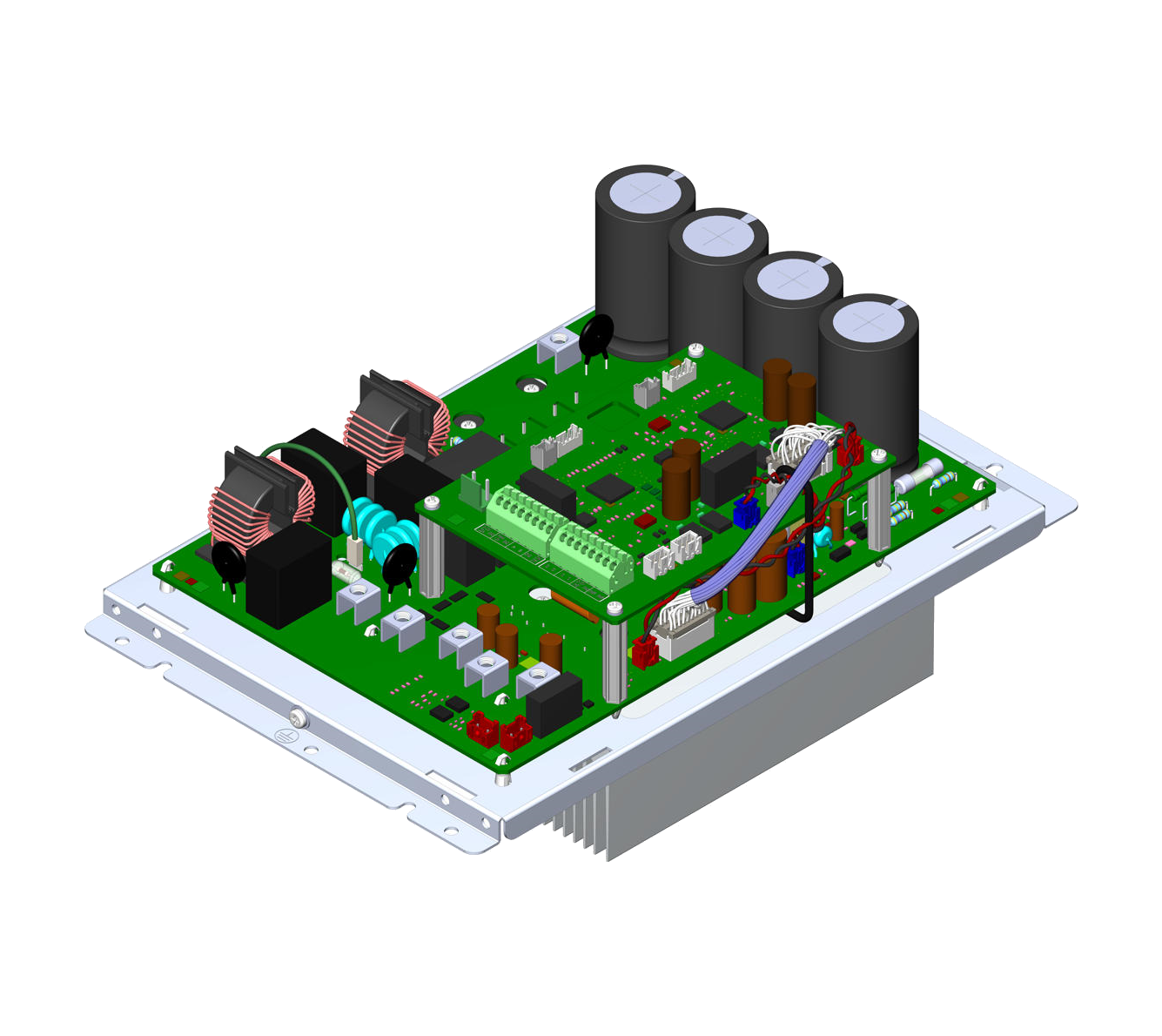

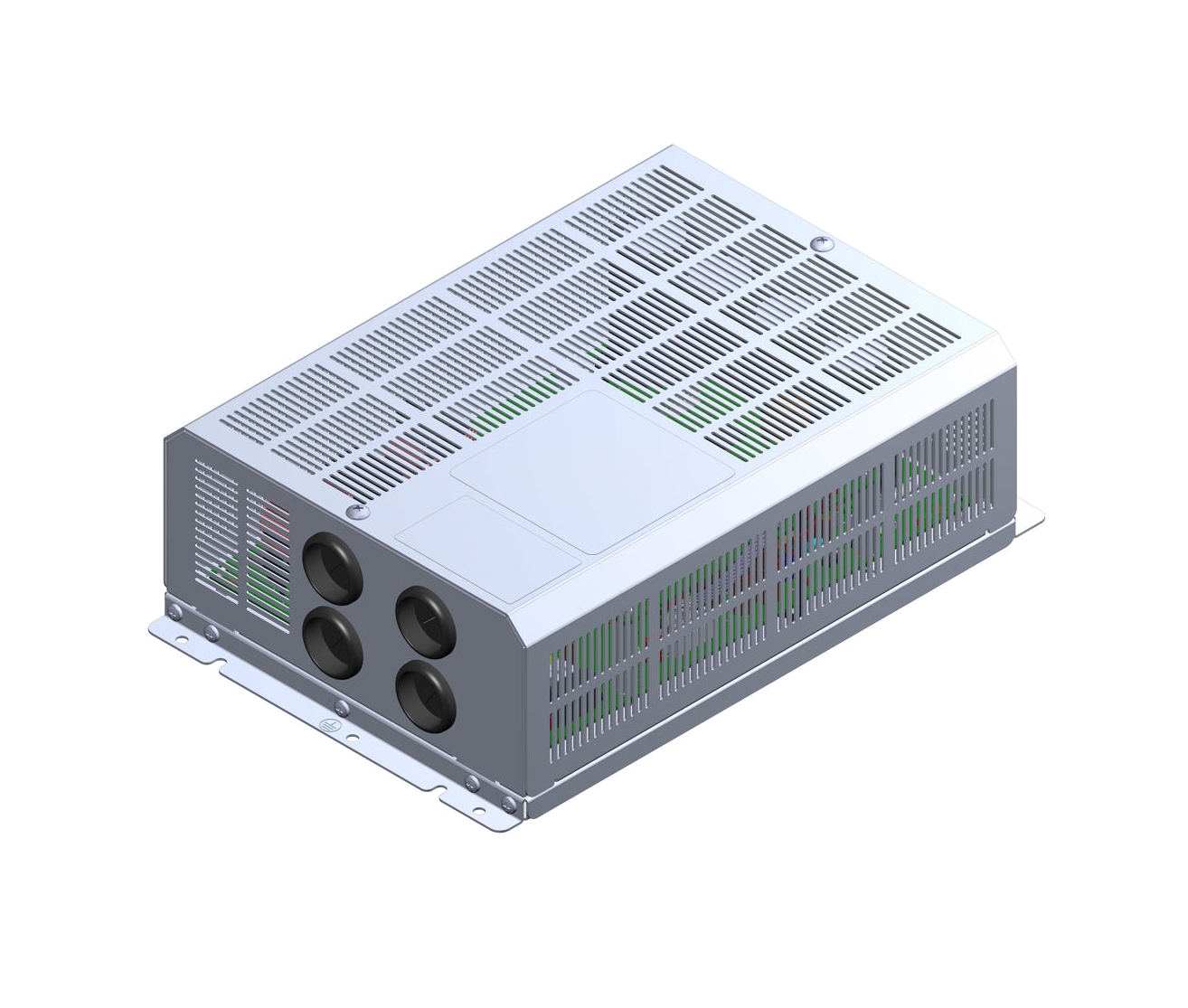

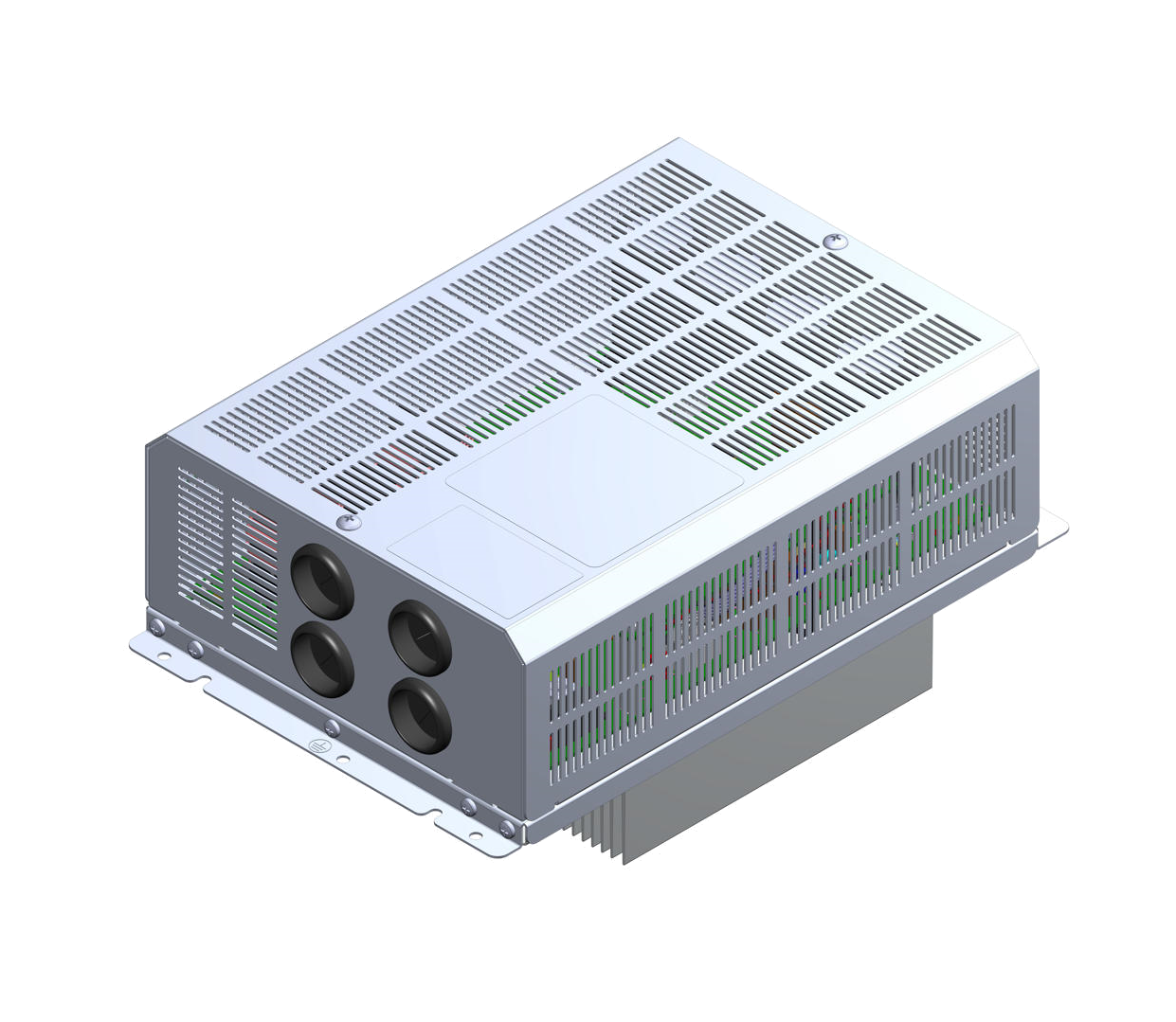

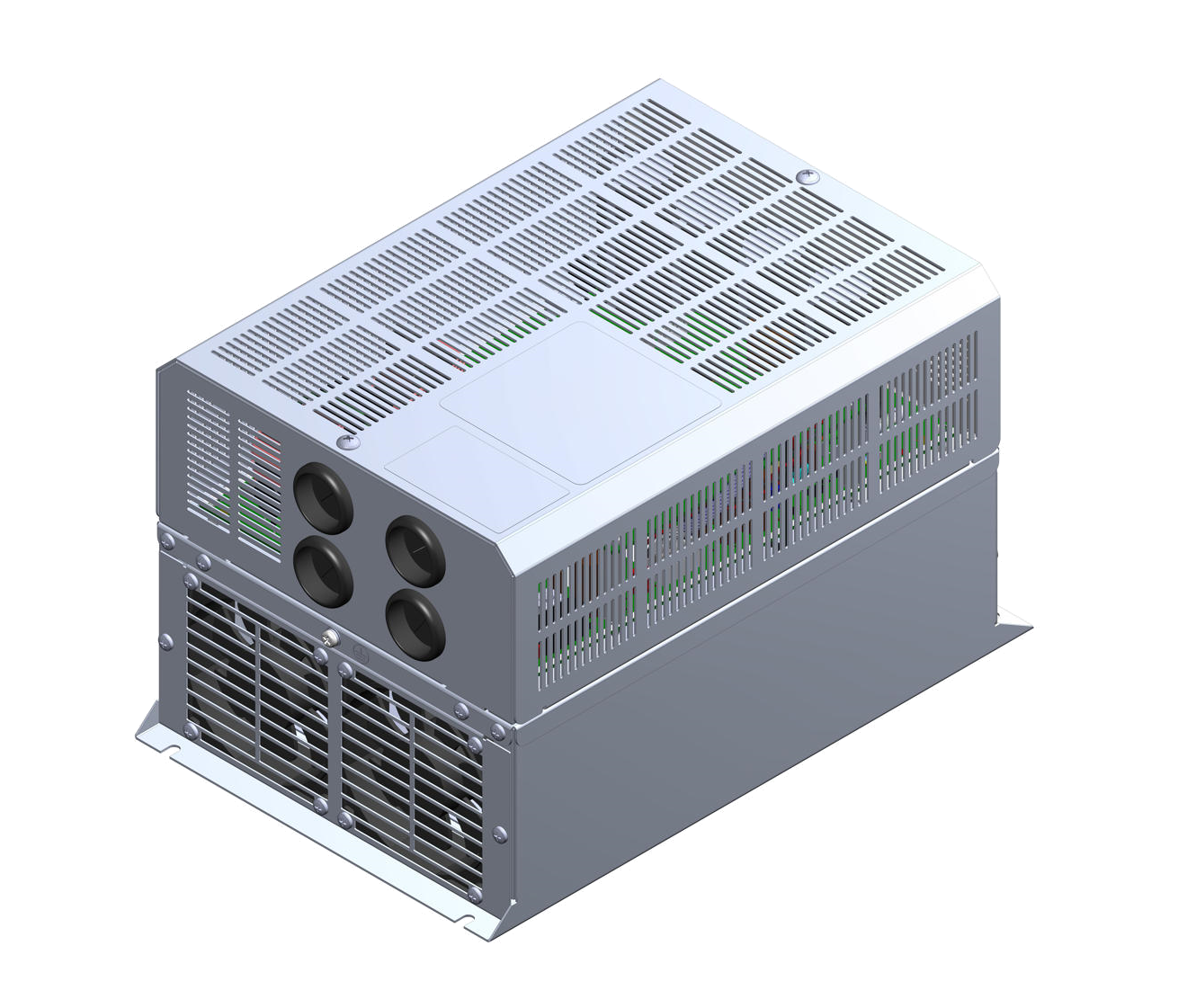

    SDP-042P*230

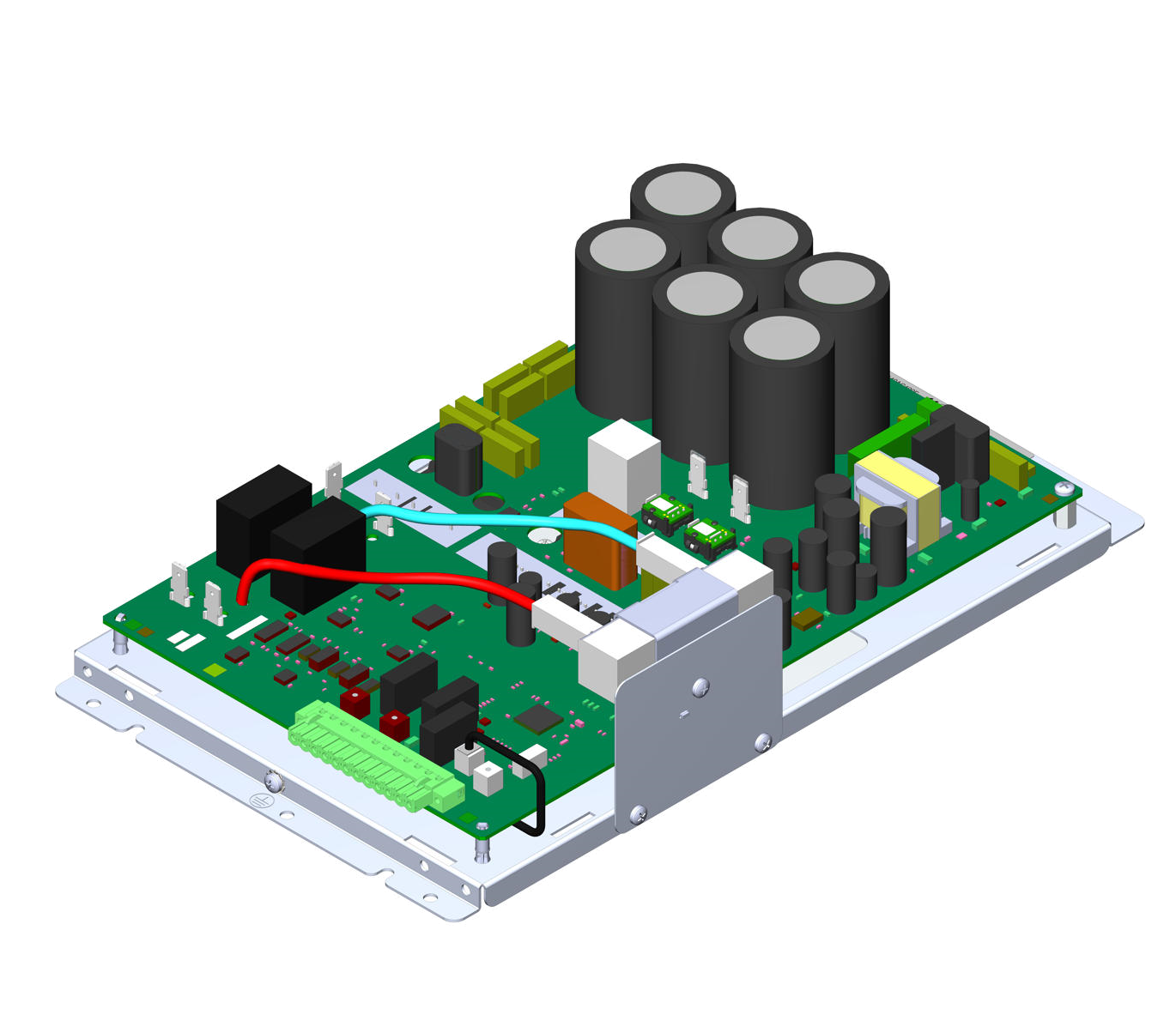

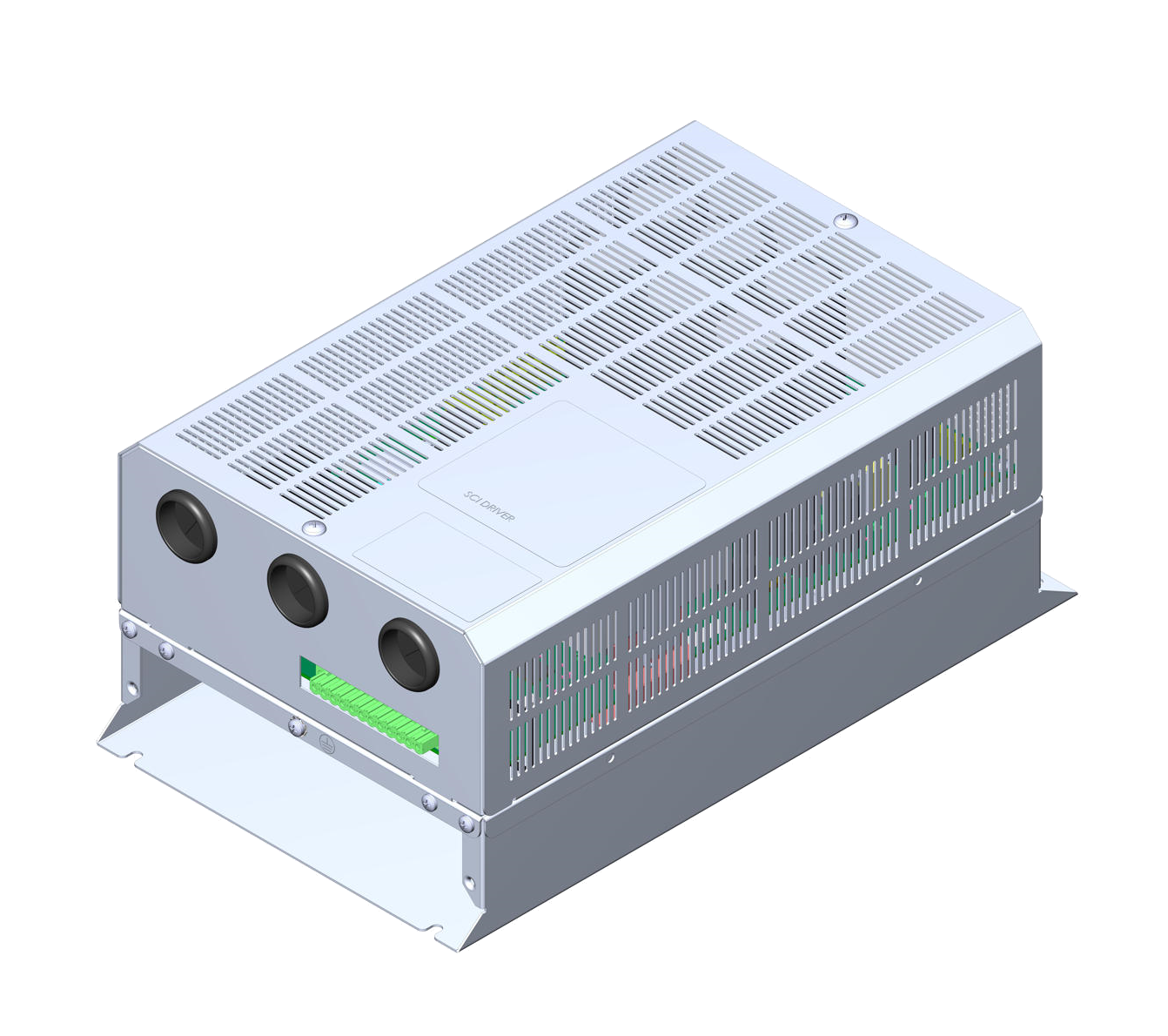

    SDP-060A*400

    SDP-062B*230

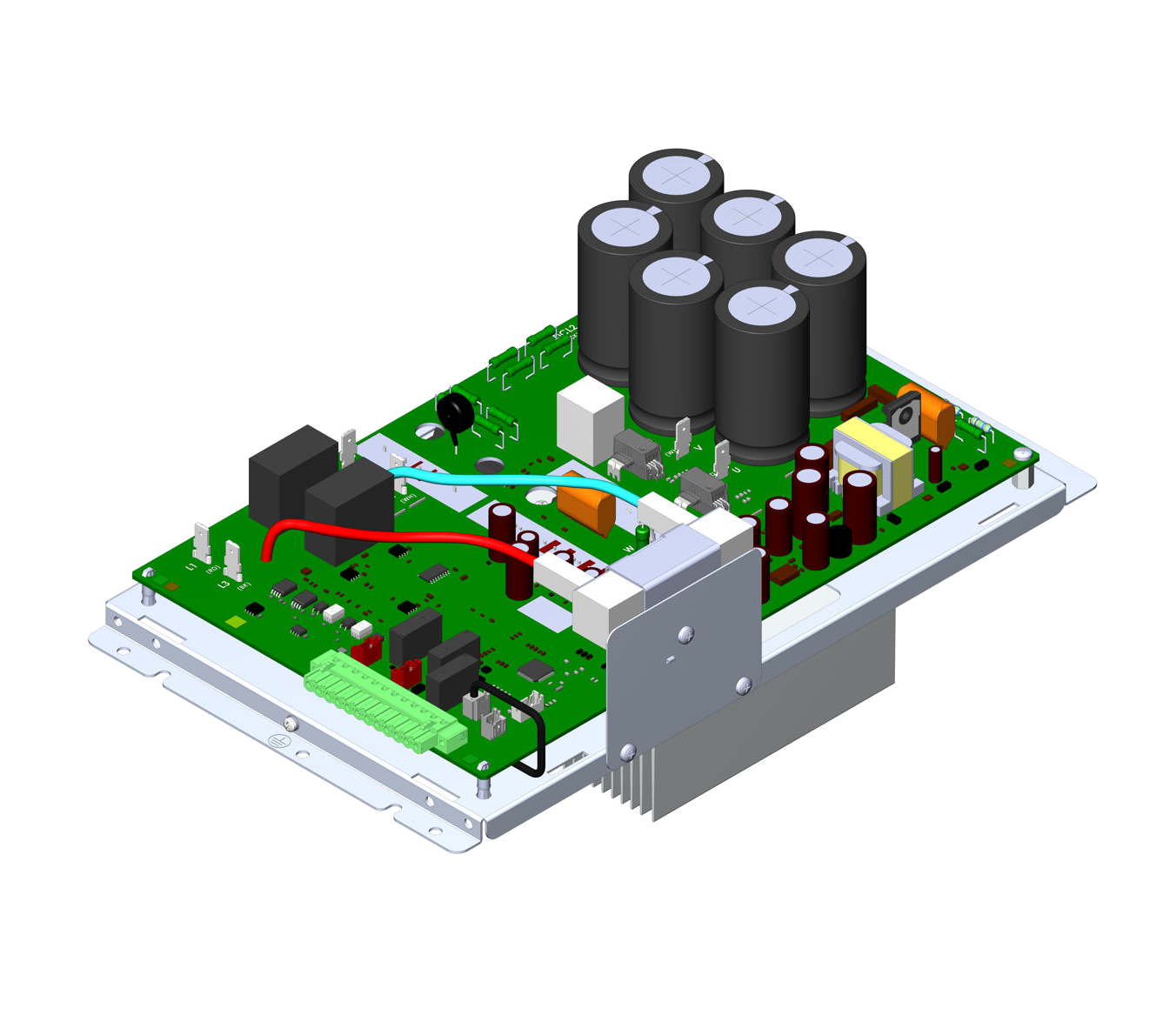

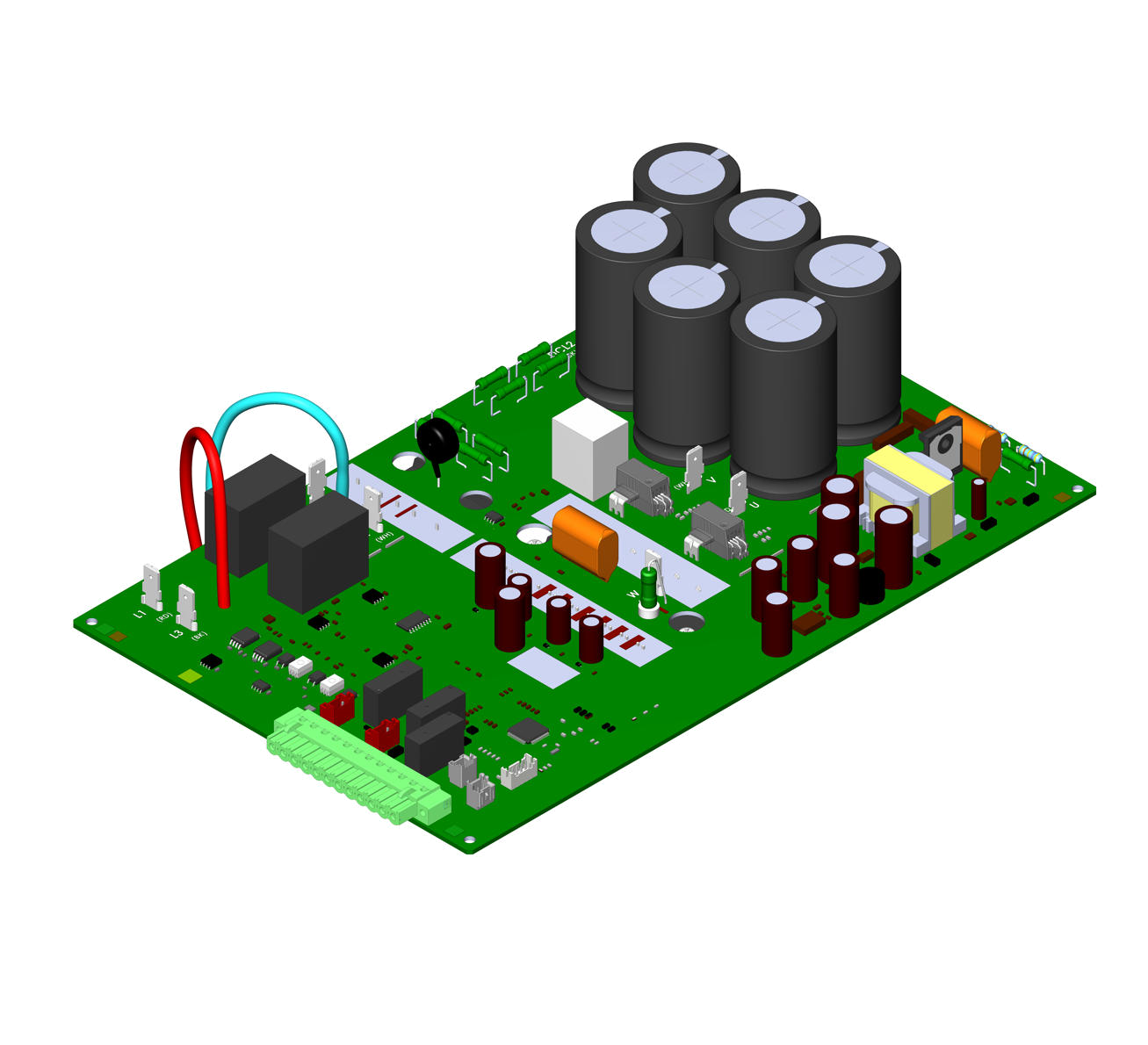

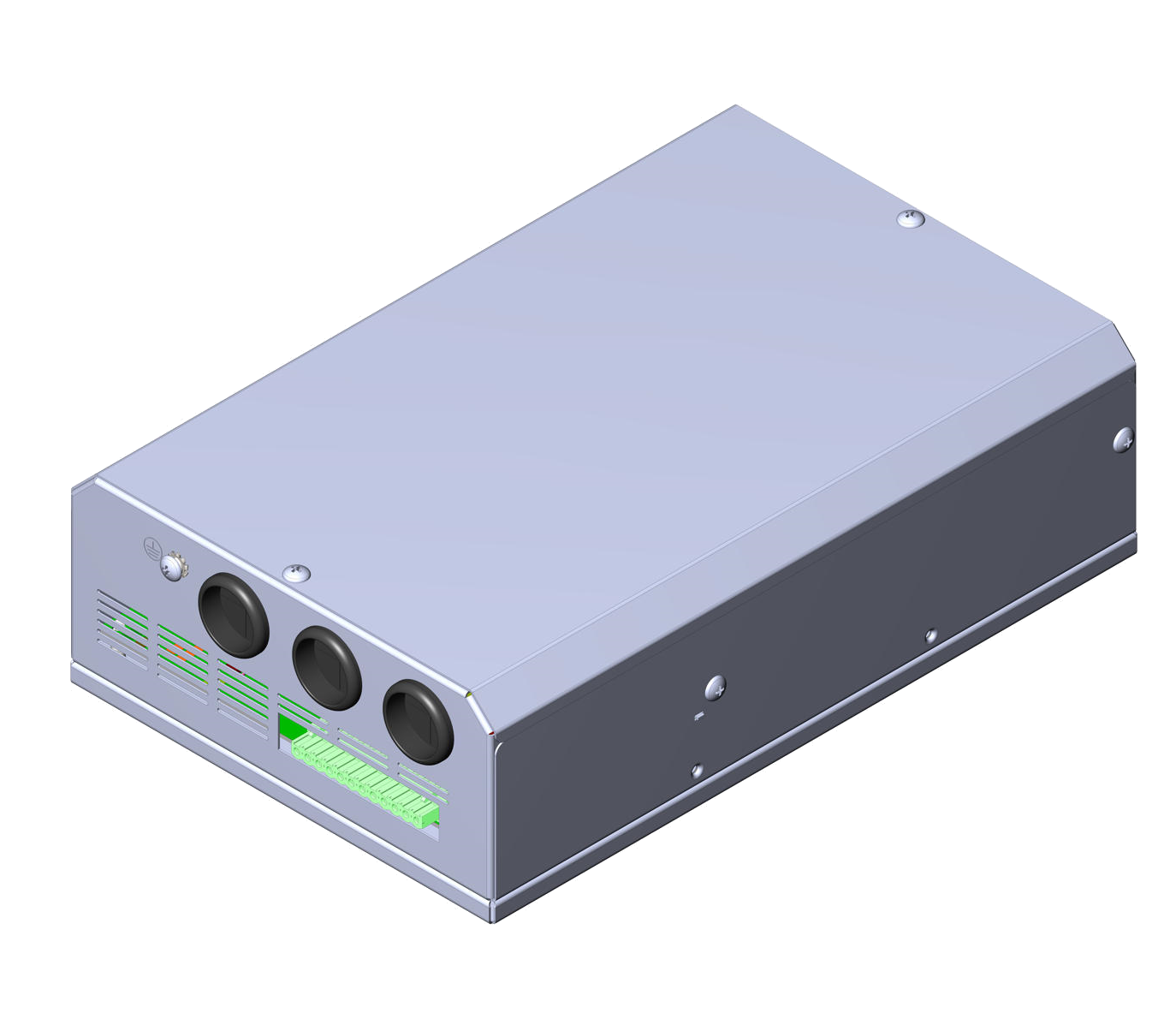

    • Driver inverter model SDP-105A*400 type A
    • Driver inverter model SDP-105A*400 type A
    • Driver inverter model SDP-105A*400 type A
    • Driver inverter model SDP-105A*400 type A
    • Driver inverter model SDP-105A*400 type A

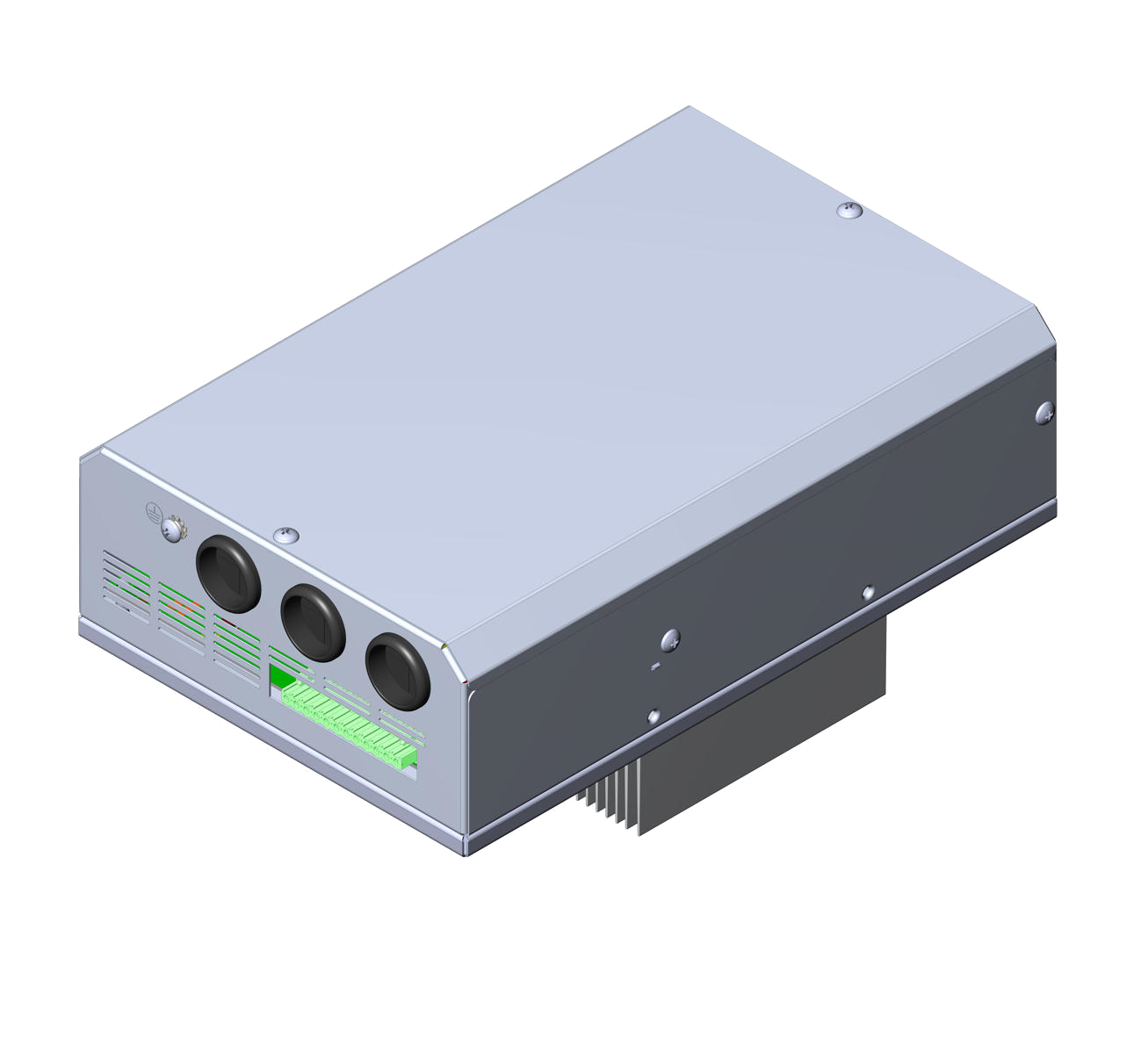

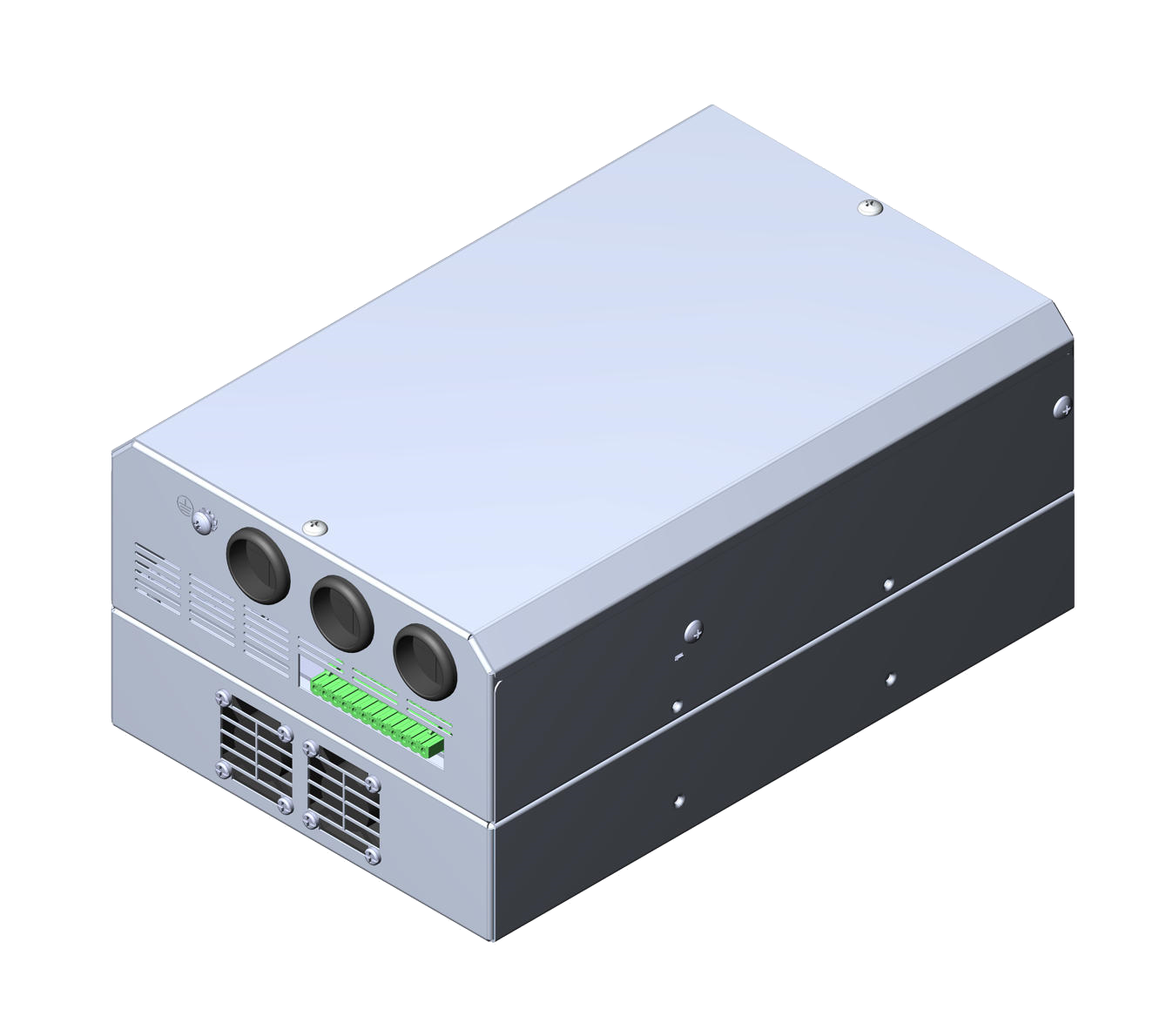

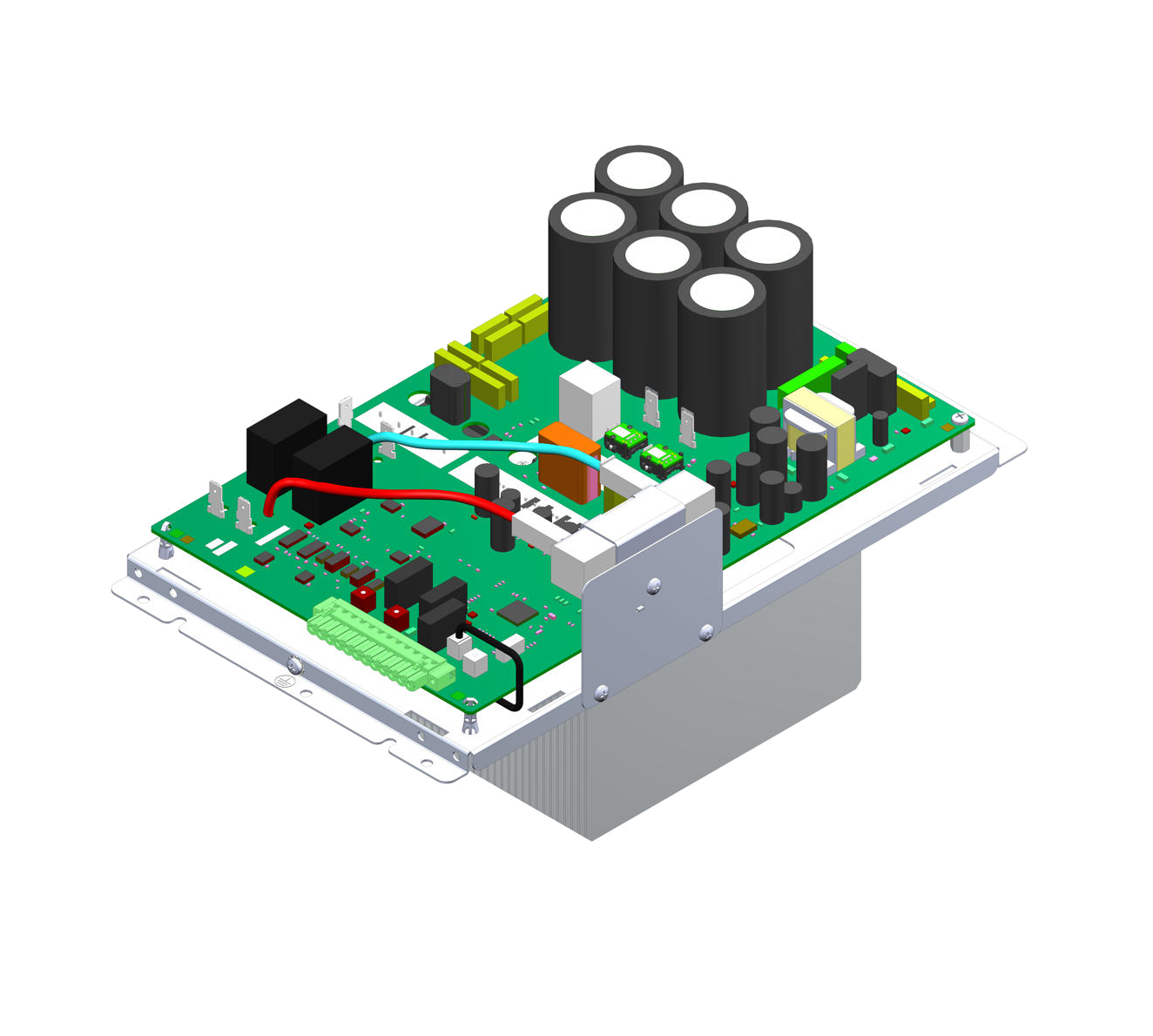

    SDP-105A*400

    • Driver inverter model SDP-140A*400 type A
    • Driver inverter model SDP-140A*400 type A
    • Driver inverter model SDP-140A*400 type A
    • Driver inverter model SDP-140A*400 type A

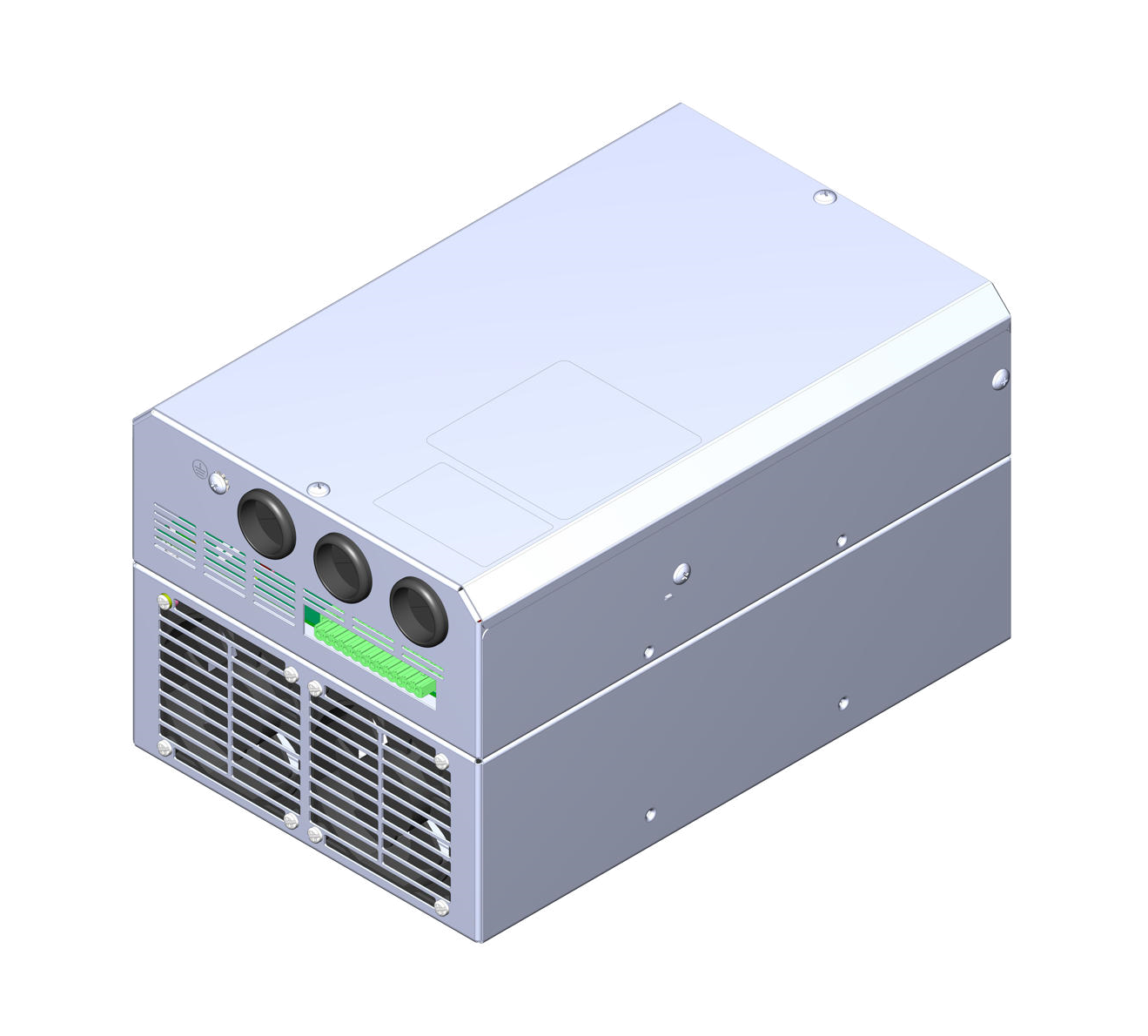

    SDP-140A*400

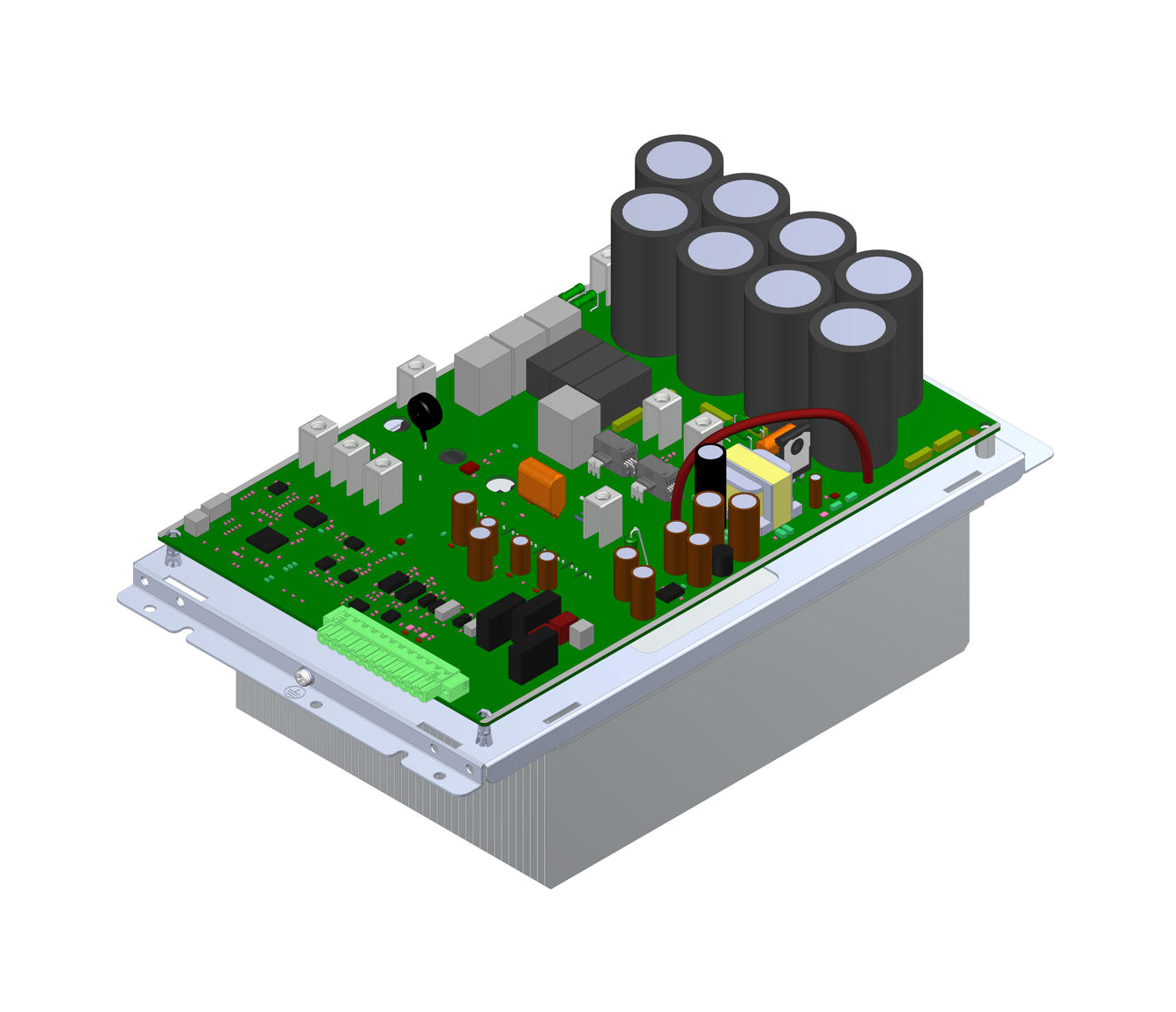

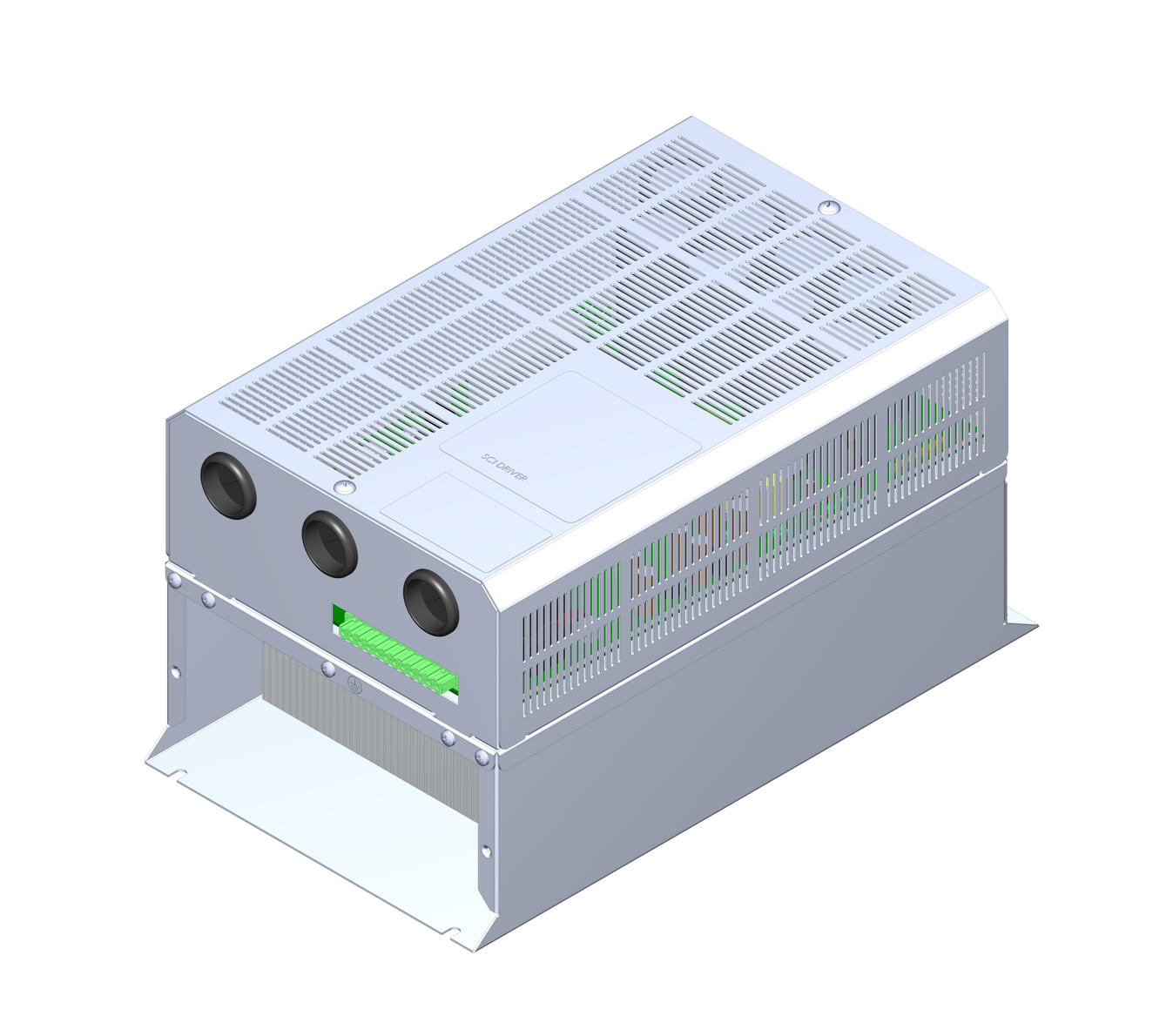

    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A
    • Driver inverter model SDP-220A*400 type A

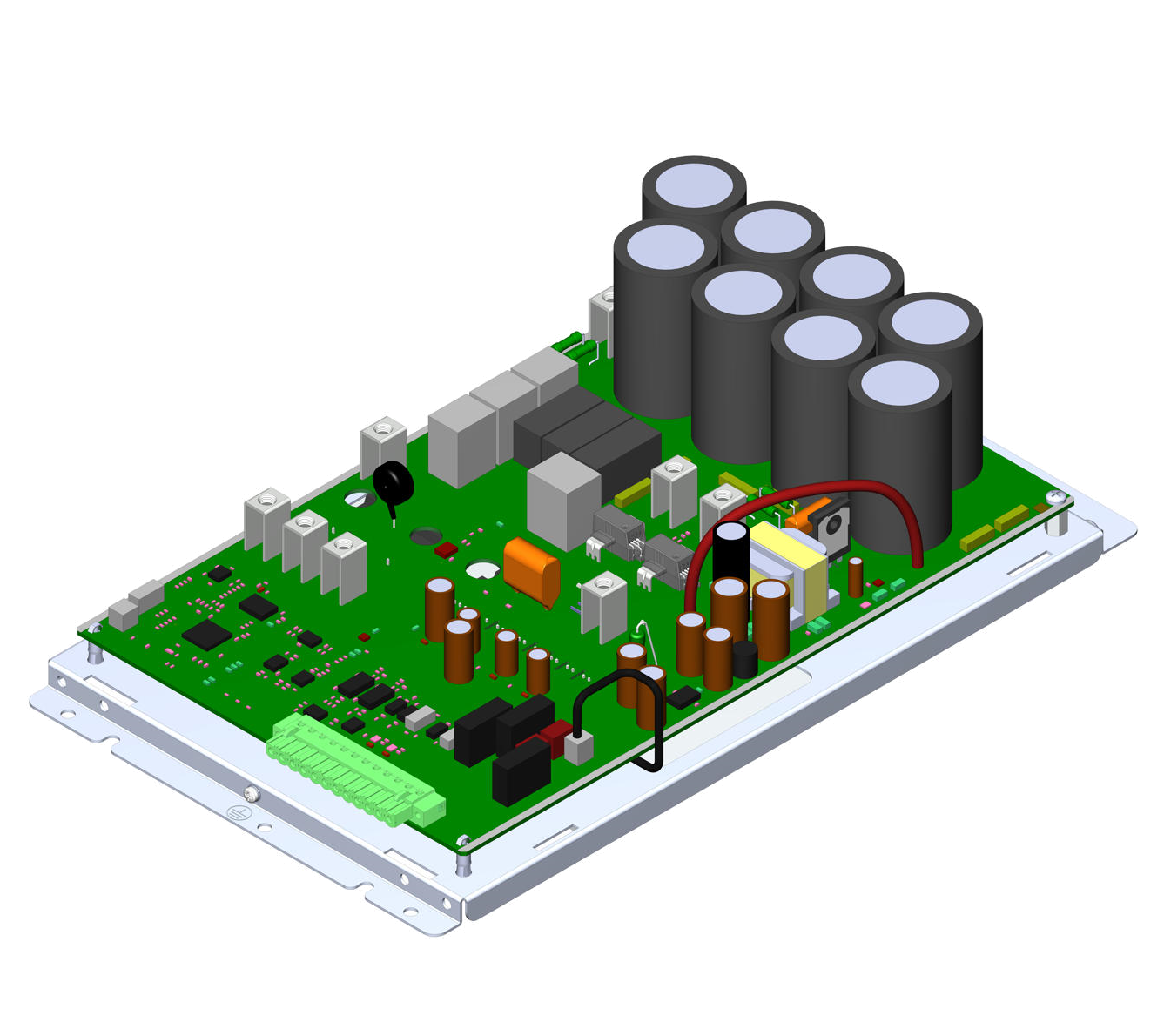

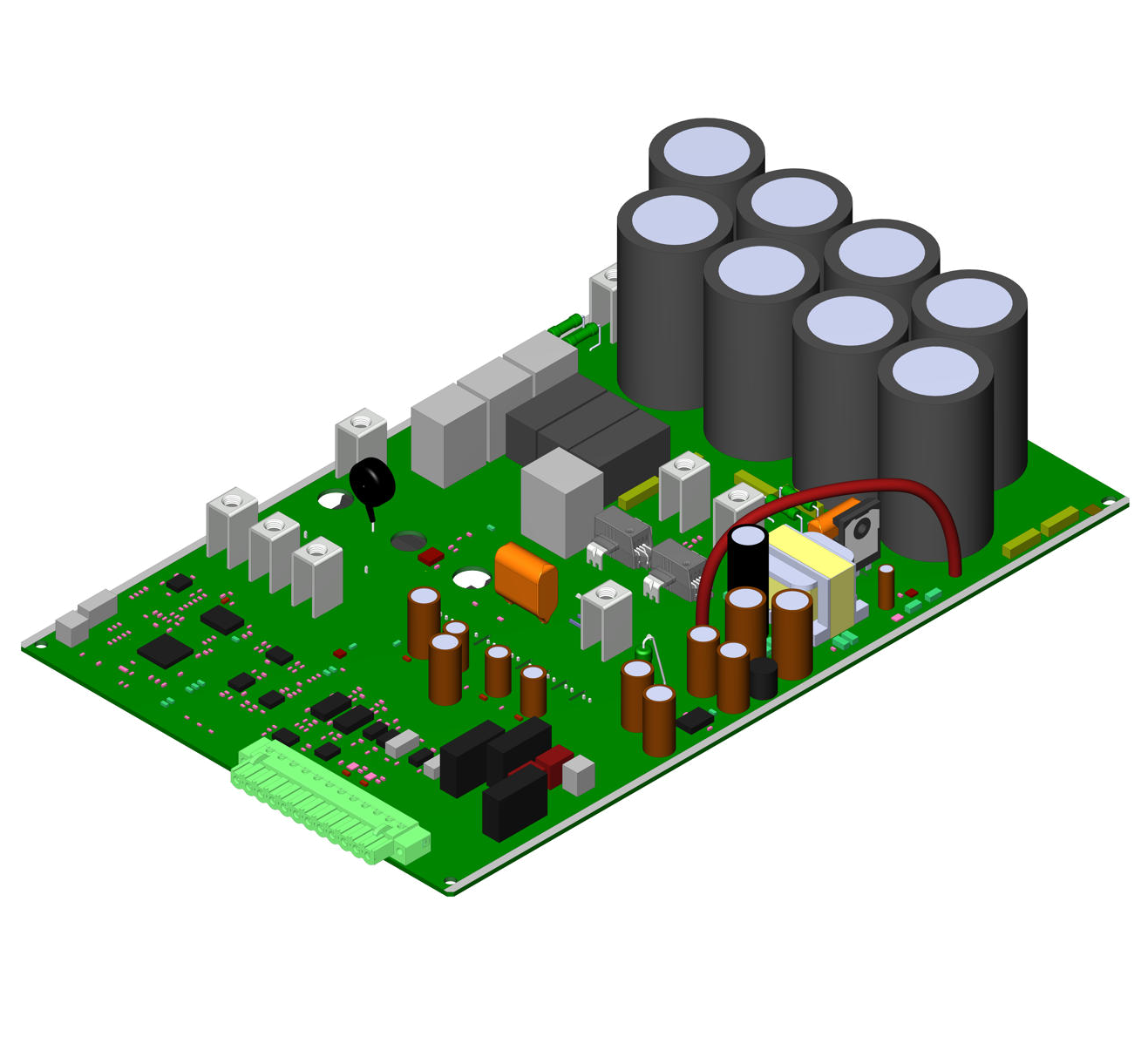

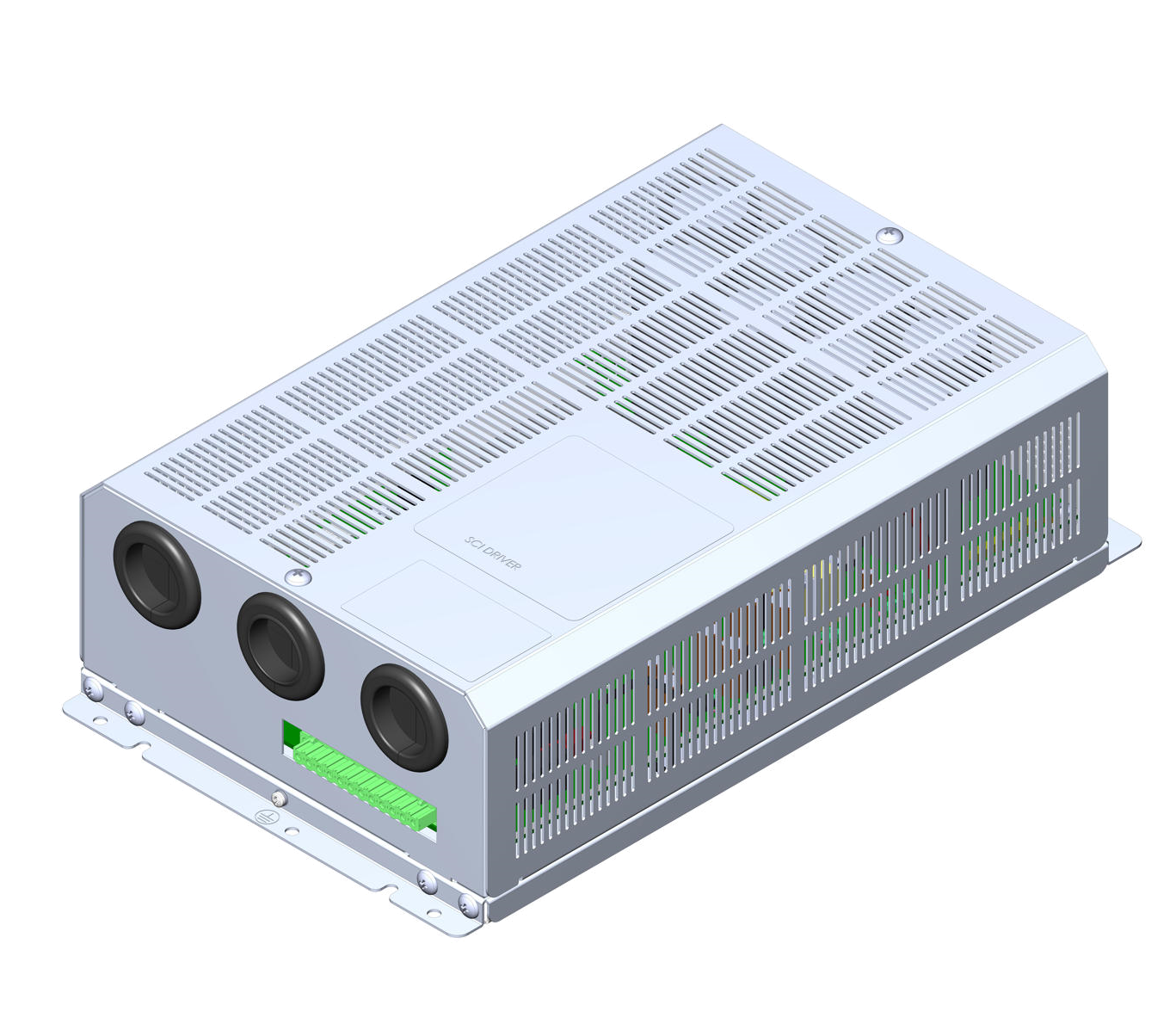

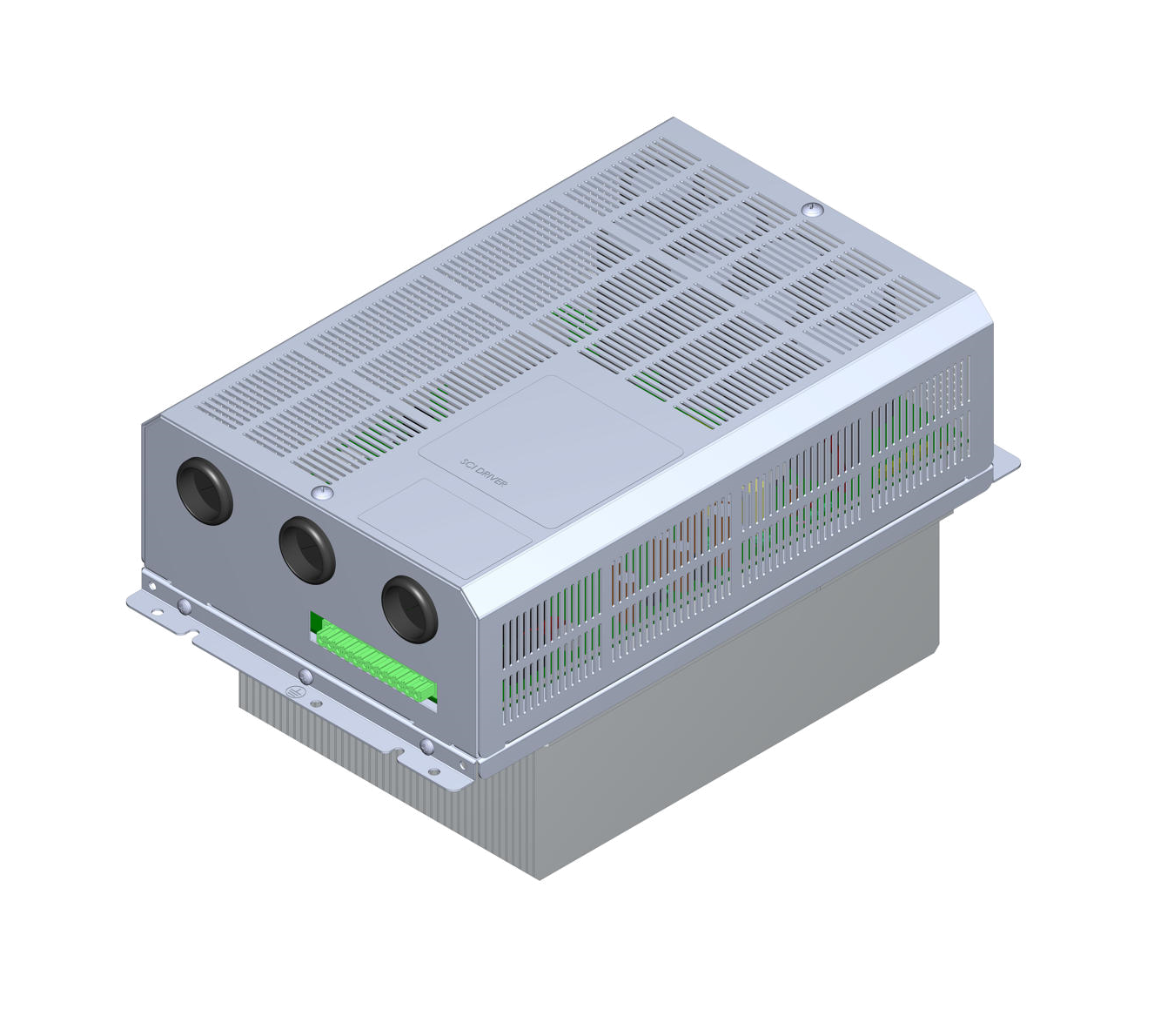

    SDP-220A*400

Input
Voltage:230 VRMSPhase:1
Voltage Range:180 ~ 253 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:11.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz,PowerCurrent:11.00 Arms
Frequency
(4 poles compressor)		:20…240 HzFrequency
(6 poles compressor)		:30...390 Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):242 VDCVoltage (High):400 VDC
Current (Speed down):11.5 ARMSCurrent S/W Trip:12 ARMS
Fin Temperature
(Speed down)		:78 ℃Fin Temperature
(Trip)		:80 ℃
Discharge Temperature (Speed down):115 ℃Discharge Temperature (Trip):120 ℃,Voltage (Low)
Voltage (High):400 VDCCurrent (Speed down):13 ARMS
Current S/W Trip:13.5 ARMSFin Temperature
(Speed down)		:78 ℃
Fin Temperature
(Trip)		:80 ℃Discharge Temperature (Speed down):115 ℃
Discharge Temperature (Trip):120 ℃,Voltage (Low)Voltage (High):410 VDC
Current (Speed down):11 ARMSCurrent S/W Trip:12.5 ARMS
Fin Temperature
(Speed down)		:78 ℃Fin Temperature
(Trip)		:80 ℃
Discharge Temperature (Speed down):115 ℃Discharge Temperature (Trip):120 ℃,Voltage (Low)
Voltage (High):410 VDCCurrent (Speed down):12 ARMS
Current S/W Trip:13 ARMSFin Temperature
(Speed down)		:85 ℃
Fin Temperature
(Trip)		:90 ℃Discharge Temperature (Speed down):120 ℃
Discharge Temperature (Trip):125 ℃
Control Method
Control Method:Space Vector ControlAnalog Input:0-10 Vdc (minimum 0.1mA)
Run/Stop:External switch (Dry contact NO, Current capacity >3mA)Emergency Stop:External switch (Dry contact NC, Current capacity >20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A),Control MethodAnalog Input:0-10 Vdc (minimum 2mA)
Run/Stop:External switch (Dry contact NO)Emergency Stop:External switch (Dry contact NC)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while running, Light while idlingCTRL LED (Orange):Blink while operated by S/W protection mode
Fault LED (Red):Blink while systematic fault,RUN LED (Green)CTRL LED (Orange):Blink when the operate by S/W ctrl mode
Fault LED (Red):Blink when system fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 32Baud Rate:1.2, 2.4, 9.6, 12.8, 19.2, 38.4, 57.6, 115.2 kbps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms),Interface
Protocol:MODBUS-RTU (Asynchronous half-duplex)Controller Address:1 to 32
Baud Rate:2400, 9600 bpsData Length:8 bit
Parity:none, odd, evenStop Bit:1, 2
Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +60C, 2 to 95%RH, (No condensing, No freezing)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
CE Mark:IEC61800-3 Cat C1CE Mark:IEC60335-1, IEC60335-2-34
Harmonics:IEC61000-3-2
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD
compresor series DGW DGW22FAAMTS1,090 (LT)SDP-042P*230
SDP-062B*230		--
compresor series DNB DNB28FAAMT9,030 (ARI)SDP-042P*230
SDP-062B*230		MUTO-A2053NSC00G421B04
9G00C106B02

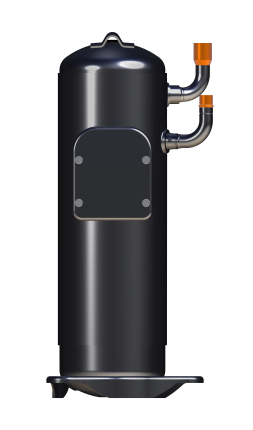

compresor series DPB DPB28FB3MT4,390 (Heat Pump)SDP-042P*230--
compresor series DVB DVB22FCNMT7,400 (ARI)SDP-042P*230-SC00G421B04
9G00C106B02
compresor series SNB SNB092FQAMT2,510 (A/C)SDP-042P*230MUTO-A2053N-
compresor series SNB SNB130FGBMT3,630 (A/C)SDP-042P*230MUTO-A2053N-
compresor series SNB SNB172FEKMT4,830 (A/C)SDP-042P*230MUTO-A2053N-
compresor series SPB SPB172FCKMT2,510 (Heat Pump)SDP-042P*230MUTO-A2053N-
compresor series TNB TNB220FLHMT7,130 (ASRE-T)SDP-042P*230
SDP-062B*230		MUTO-A2053NSC00G242G01
9G00C103G01
compresor series TNB TNB220FSGMT7,130 (ASRE-T)SDP-042P*230MUTO-A2053N-
compresor series TPB TPB306FCHMT4,750 (Heat Pump)SDP-042P*230MUTO-A2053NSC00G242G01
9G00C103G01
Input
Voltage:400 VRMSPhase:3
Voltage Range:320 ~ 480 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:10.00 Arms
Frequency
(4 poles compressor)		:20…240 HzFrequency
(6 poles compressor)		:30…390 Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):350 VDCVoltage (High):700 VDC
Current (Speed down):10.5 ARMSCurrent S/W Trip:11.5 ARMS
Fin Temperature
(Speed down)		:85 ℃Fin Temperature
(Trip)		:90 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃
Control Method
Control Method:Space Vector ControlAnalog Input:0-10 Vdc (minimum 2mA)
Run/Stop:External switch (Dry contact NO)Emergency Stop:External switch (Dry contact NC)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while Start-up, Light when RunningCTRL LED (Orange):Blink when the operate by S/W ctrl mode
Fault LED (Red):Blink when system fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 32Baud Rate:1200, 2400, 9600, 19200 bps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +60C, 2 to 95%RH, (No condensing, No freezing)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
CE Mark:EN 61800-5-1, EN 61800-3 Cat. C1CE Mark:EN 60335-1, EN 60335-2-34
Harmonics:IEC 61000-3-2
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD

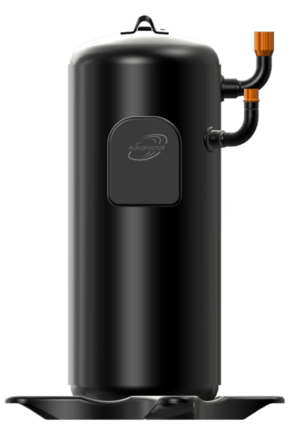

compresor series AJB AJB52FAAMT7,600 (ARI)SDP-060A*400--
compresor series APB APB33FAAMT5,100 (Heat Pump)SDP-060A*400MUTO-A2053N-
compresor series DNB DNB22FAFMT7,000 (ARI)SDP-060A*400MUTO-A2053NSC00G421B04
9G00C106B02
compresor series DNB DNB28FAEMT9,030 (ARI)SDP-060A*400MUTO-A2053NSC00G421B04
9G00C106B02
compresor series DNB DNB28FANMT9,060 (ARI)SDP-060A*400-SC00G421B04
9G00C106B02
compresor series DNB DNB36FANMT11,600 (ARI)SDP-060A*400MUTO-A4053NSC00G421B04
9G00C106B02
compresor series DNK DNK22FAFMT7,000 (ARI)SDP-060A*400-SC00G421B03
9G00C106B01
compresor series DNK DNK28FDEMT9,000 (ARI)SDP-060A*400--

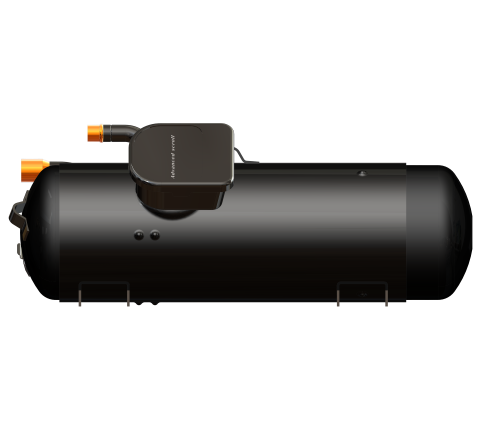

compresor series DPW DPW22FBAMTS850 (LT)SDP-060A*400--
compresor series DPW DPW28FBAMTS1,190 (LT)SDP-060A*400--
compresor series DPW DPW36FBAMTS1,500 (LT)SDP-060A*400--
compresor series DPW DPW42FBAMTS4,650 (MT)SDP-060A*400--
compresor series DVB DVB28FCQMT9,600 (ARI)SDP-060A*400-SC00G421B04
9G00C106B02
compresor series SVB SVB220FBAMT7,130 (ARI)SDP-060A*400
SDP-105A*400		MUTO-A2053NSC00G241G01
9G00C102G01
Input
Voltage:230 VRMSPhase:1
Voltage Range:180 ~ 253 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:21.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):200 VDCVoltage (High):380 VDC
Current (Speed down):21 ARMSCurrent S/W Trip:22 ARMS
Fin Temperature
(Speed down)		:85 ℃Fin Temperature
(Trip)		:90 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃,Voltage (Low)
Voltage (High):380 VDCCurrent (Speed down):22 ARMS
Current S/W Trip:23 ARMSFin Temperature
(Speed down)		:85 ℃
Fin Temperature
(Trip)		:90 ℃Discharge Temperature (Speed down):120 ℃
Discharge Temperature (Trip):125 ℃,Voltage (Low)Voltage (High):380 VDC
Current (Speed down):22 ARMSCurrent S/W Trip:23 ARMS
Fin Temperature
(Speed down)		:85 ℃Fin Temperature
(Trip)		:90 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃
Control Method
Control Method:Space Vector ControlAnalog Input:0-10 Vdc (minimum 2mA)
Run/Stop:External switch (Dry contact NO, Current capacity >3mA)Emergency Stop:External switch (Dry contact NC, Current capacity >20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A),Control MethodAnalog Input:0-10 Vdc (minimum 2mA)
Run/Stop:External switch (Dry contact NO, Current capacity >3mA)Emergency Stop:External switch (Dry contact NCCurrent capacity >20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while running, Light while idlingCTRL LED (Orange):Blink while operated by S/W protection mode
Fault LED (Red):Blink while systematic fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 32Baud Rate:1.2, 2.4, 9.6, 19.2, 38.4, 57.6, 115.2 kbps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms),Interface
Protocol:MODBUS-RTU (Asynchronous half-duplex)Controller Address:1 to 32
Baud Rate:1.2, 2.4, 9.6, 38.4, 57.6, 115.2 kbpsData Length:8 bit
Parity:none, odd, evenStop Bit:1, 2
Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +60C, 2 to 95%RH, (No condensing, No freezing)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD
compresor series AGB AGB33FABMTS4,060 (MT)SDP-062B*230MUTO-A2053N-
compresor series AGB AGB42FABMTS5,510 (MT)SDP-062B*230MUTO-A2053N-
compresor series AGB AGB66FBBMTS8,770 (MT)SDP-062B*230MUTO-A4053N-
compresor series ANB ANB33FBSMT10,800 (ARI)SDP-062B*230MUTO-A2053NSC00G218B02
9G00C131B01
compresor series ANB ANB42FUDMT13,700 (ARI)SDP-062B*230MUTO-A4053N-
compresor series APB APB42FABMT6,200 (Heat Pump)SDP-062B*230-SC00G218B01
9G00C104B01
compresor series APB APB52FABMT7,800 (Heat Pump)SDP-062B*230-SC00G218B01
9G00C104B01
compresor series AVB AVB33FAEMT11,000 (ARI)SDP-062B*230MUTO-A2053NSC00G218B01
9G00C104B01
compresor series AVB AVB33FJAMT11,100 (ARI)SDP-062B*230MUTO-A2053N-
compresor series AVB AVB36FJBMT12,100 (ARI)SDP-062B*230MUTO-A4053N-
compresor series DGW DGW22FAAMTS1,090 (LT)SDP-042P*230
SDP-062B*230		--
compresor series DGW DGW28FAAMTS1,430 (LT)SDP-062B*230--
compresor series DGW DGW36FAAMTS1,880 (LT)SDP-062B*230--
compresor series DNB DNB22FAHMT6,950 (ARI)SDP-062B*230-SC00G421B04
9G00C106B02
compresor series DNB DNB22FASMT7,000 (ARI)SDP-062B*230-SC00G421B04
9G00C106B02
compresor series DNB DNB28FAAMT9,030 (ARI)SDP-042P*230
SDP-062B*230		MUTO-A2053NSC00G421B04
9G00C106B02
compresor series DNB DNB28FAGMT9,050 (ARI)SDP-062B*230-SC00G421B04
9G00C106B02
compresor series DNB DNB36FDAMT11,600 (ARI)SDP-062B*230-SC00G421B04
9G00C106B02
compresor series DNK DNK22FDBMT7,000 (ARI)SDP-062B*230--
compresor series DNK DNK28FBAMT8,950 (ARI)SDP-062B*230MUTO-A2053NSC00G421B03
9G00C106B01
compresor series DNK DNK36FAAMT11,640 (ARI)SDP-062B*230MUTO-A4053NSC00G421B03
9G00C106B01
compresor series DPB DPB36FF3MT5,600 (Heat Pump)SDP-062B*230--
compresor series DPB DPB52FB1MT8,400 (Heat Pump)SDP-062B*230--
compresor series DVB DVB36FCBMT12,400 (ARI)SDP-062B*230MUTO-A4053NSC00G421B04
9G00C106B02
compresor series SNB SNB220FBGMT6,840 (ASRE-T)SDP-062B*230MUTO-A2053NSC00G241G01
9G00C102G01
compresor series TNB TNB220FLHMT7,130 (ASRE-T)SDP-042P*230
SDP-062B*230		MUTO-A2053NSC00G242G01
9G00C103G01
compresor series TNB TNB306FPGMT9,880 (ASRE-T)SDP-062B*230MUTO-A2053NSC00G242G01
9G00C103G01
compresor series TVB TVB306FPGMT9,930 (ARI)SDP-062B*230MUTO-A2053NSC00G242G01
9G00C103G01
Input
Voltage:400 VRMSPhase:3
Voltage Range:320 ~ 480 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:17.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz,PowerCurrent:30.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):350 VDCVoltage (High):700 VDC
Current (Speed down):15.5 ARMSCurrent S/W Trip:16.5 ARMS
Fin Temperature
(Speed down)		:83 ℃Fin Temperature
(Trip)		:86 ℃
Discharge Temperature (Speed down):110 ℃Discharge Temperature (Trip):115 ℃,Voltage (Low)
Voltage (High):700 VDCCurrent (Speed down):15.5 ARMS
Current S/W Trip:16.5 ARMSFin Temperature
(Speed down)		:83 ℃
Fin Temperature
(Trip)		:86 ℃Discharge Temperature (Speed down):115 ℃
Discharge Temperature (Trip):120 ℃,Voltage (Low)Voltage (High):700 VDC
Current (Speed down):17.5 ARMSCurrent S/W Trip:18.5 ARMS
Fin Temperature
(Speed down)		:83 ℃Fin Temperature
(Trip)		:86 ℃
Discharge Temperature (Speed down):115 ℃Discharge Temperature (Trip):120 ℃,Voltage (Low)
Voltage (High):700 VDCCurrent (Speed down):32 ARMS
Current S/W Trip:33 ARMSFin Temperature
(Speed down)		:67 ℃
Fin Temperature
(Trip)		:70 ℃Discharge Temperature (Speed down):120 ℃
Discharge Temperature (Trip):125 (Depend on compressor models) ℃
Control Method
Control Method:Sensorless Vector ControlAnalog Input:0-10 Vdc (minimum 0.1mA)
Run/Stop:External switch (Dry contact NO, Current capacity > 3mA)Emergency Stop:External switch (Dry contact NC, Current capacity > 20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A),Control MethodAnalog Input:0-10 Vdc (minimum 0.1mA)
Run/Stop:External switch (Dry contact NO, Current capacity > 3mA)Emergency Stop:External switch (Dry contact NC, Current capacity > 20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while running, Light while idlingCTRL LED (Orange):Blink while operated by S/W protection mode
Fault LED (Red):Blink while systematic fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 247Baud Rate:1200, 2400, 9600, 19200 bps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms),Interface
Protocol:MODBUS-RTU (Asynchronous half-duplex)Controller Address:1 to 32
Baud Rate:1200, 2400, 9600, 19200 bpsData Length:8 bit
Parity:none, odd, evenStop Bit:1, 2
Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +60C, 2 to 95%RH, (No condensing, No freezing)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
Safety:EN 60335-1, EN 60335-2-34EMC:EN 61800-3 Cat. C1
Harmonic:EN 61000-3-12
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD
compresor series AGB AGB33FAAMTS4,060 (MT)SDP-105A*400MUTO-A2053N-
compresor series AGB AGB42FAAMTS5,510 (MT)SDP-105A*400MUTO-A2053N-
compresor series AGB AGB52FAAMTS6,760 (MT)SDP-105A*400MUTO-A4053N-
compresor series AGB AGB66FBAMTS8,770 (MT)SDP-105A*400MUTO-A4053N-
compresor series AJB AJB87FBAMT12,700 (ARI)SDP-105A*400--
compresor series ANB ANB33FKJMT10,700 (ARI)SDP-105A*400MUTO-A2053NSC00G218B02
9G00C131B01
compresor series ANB ANB33FUBMT10,800 (ARI)SDP-105A*400--
compresor series ANB ANB42FUBMT13,700 (ARI)SDP-105A*400MUTO-A4053N-
compresor series ANB ANB52FKPMT17,200 (ARI)SDP-105A*400
SDP-140A*400		MUTO-A4053NSC00G218B02
9G00C131B01
compresor series APB APB100FA1MT15,850 (Heat Pump)SDP-105A*400--
compresor series AVB AVB33FACMT10,900 (ARI)SDP-105A*400MUTO-A2053N-
compresor series DVB DVB36FCPMT12,430 (ARI)SDP-105A*400-SC00G421B04
9G00C106B02
compresor series SNB SNB220FBAMT6,840 (ASRE-T)SDP-105A*400MUTO-A2053NSC00G241G01
9G00C102G01
compresor series SVB SVB220FBAMT7,130 (ARI)SDP-060A*400
SDP-105A*400		MUTO-A2053NSC00G241G01
9G00C102G01
Input
Voltage:400 VRMSPhase:3
Voltage Range:320 ~ 480 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:25.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):350 VDCVoltage (High):700 VDC
Current (Speed down):21.5 ARMSCurrent S/W Trip:22.5 ARMS
Fin Temperature
(Speed down)		:75 ℃Fin Temperature
(Trip)		:78 ℃
Discharge Temperature (Speed down):115 ℃Discharge Temperature (Trip):120 ℃,Voltage (Low)
Voltage (High):700 VDCCurrent (Speed down):25.5 ARMS
Current S/W Trip:26.5 ARMSFin Temperature
(Speed down)		:75 ℃
Fin Temperature
(Trip)		:78 ℃Discharge Temperature (Speed down):115 ℃
Discharge Temperature (Trip):120 ℃,Voltage (Low)Voltage (High):700 VDC
Current (Speed down):25.5 ARMSCurrent S/W Trip:26.5 ARMS
Fin Temperature
(Speed down)		:75 ℃Fin Temperature
(Trip)		:78 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃
Control Method
Control Method:Space Vector ControlAnalog Input:0-10 Vdc (minimum 0.1mA)
Run/Stop:External switch (Dry contact NO, Current capacity > 2±1mA)Emergency Stop:External switch (Dry contact NC, Current capacity > 19±1mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A),Control MethodAnalog Input:0-10 Vdc (minimum 2mA)
Run/Stop:External switch (Dry contact NO)Emergency Stop:External switch (Dry contact NC)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while running, Light while idlingCTRL LED (Orange):Blink while operated by S/W protection mode
Fault LED (Red):Blink while systematic fault,RUN LED (Green)CTRL LED (Orange):Blink when the operate by S/W ctrl mode
Fault LED (Red):Blink when system fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 32Baud Rate:1200, 2400, 9600, 19200 bps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +50C, 2 to 95%RH, (No condensing, No freezing)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year,Operation Temperature
Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD
compresor series AGB AGB78FBAMTS10,400 (MT)SDP-140A*400MUTO-A4053N-
compresor series ANB ANB42FLGMT13,500 (ARI)SDP-140A*400-SC00G218B01
9G00C104B01
compresor series ANB ANB52FKFMT17,200 (ARI)SDP-140A*400MUTO-A4053NSC00G218B02
9G00C131B01
compresor series ANB ANB52FKPMT17,200 (ARI)SDP-105A*400
SDP-140A*400		MUTO-A4053NSC00G218B02
9G00C131B01
compresor series ANB ANB66FUFMTS21,800 (ARI)SDP-140A*400MUTO-A4053N-
compresor series ANB ANB66FUJMTS4,900 (LT)SDP-140A*400MUTO-A4053N-
compresor series ANB ANB66FVAMT21,500 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB66FVQMT21,000 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB66FZHMT21,300 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053N-
compresor series ARB ARB78FA1MT21,400 (Heat Pump)SDP-140A*400-SC00G418B06
9G00C105B02
compresor series AVB AVB52FLAMT17,800 (ARI)SDP-140A*400-SC00G418B06
9G00C105B02
Input
Voltage:400 VRMSPhase:3
Voltage Range:320 ~ 480 VRMSFrequency:50/60 Hz
Output
Power:0.00 kWCurrent:35.00 Arms
Frequency
(4 poles compressor)		: HzFrequency
(6 poles compressor)		: Hz
Carrier Frequency:5 kHz
Protection
Voltage (Low):350 VDCVoltage (High):700 VDC
Current (Speed down):35.5 ARMSCurrent S/W Trip:36.5 ARMS
Fin Temperature
(Speed down)		:60 ℃Fin Temperature
(Trip)		:63 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃,Voltage (Low)
Voltage (High):700 VDCCurrent (Speed down):35.5 ARMS
Current S/W Trip:36.5 ARMSFin Temperature
(Speed down)		:67 ℃
Fin Temperature
(Trip)		:70 ℃Discharge Temperature (Speed down):120 ℃
Discharge Temperature (Trip):125 ℃,Voltage (Low)Voltage (High):700 VDC
Current (Speed down):45.5 ARMSCurrent S/W Trip:46.5 ARMS
Fin Temperature
(Speed down)		:67 ℃Fin Temperature
(Trip)		:70 ℃
Discharge Temperature (Speed down):120 ℃Discharge Temperature (Trip):125 ℃
Control Method
Control Method:Space Vector ControlAnalog Input:0-10 Vdc (minimum 0.1mA)
Run/Stop:External switch (Dry contact NO, Current capacity > 3mA))Emergency Stop:External switch (Dry contact NC, Current capacity > 20mA)
Fault Alarm Output:Relay output (NO, 230Vac/ 30Vdc, 5A)
Indicator
RUN LED (Green):Blink while running, Light while idlingCTRL LED (Orange):Blink while operated by S/W protection mode
Fault LED (Red):Blink while systematic fault,RUN LED (Green)CTRL LED (Orange):Blink when the operate by S/W ctrl mode
Fault LED (Red):Blink when system fault
Communication
Interface:Standard RS-485Protocol:MODBUS-RTU (Asynchronous half-duplex)
Controller Address:1 to 32Baud Rate:1200, 2400, 9600, 19200 bps
Data Length:8 bitParity:none, odd, even
Stop Bit:1, 2Response delay time:< 3.5 Char (Minimum 1.75 ms)
Environment
Operation Temperature:-20 to +50C, 2 to 95%RH, (No condensing, No freezing) (Refer the ambient temperature derating)Storage Temperature:-40 to +85C, 2 to 85%RH, (No condensing, No freezing), Storage period 1 year
Standard
CE Mark:EN 61800-5-1, EN 61800-3 Cat. C1CE Mark:EN 60335-1, EN 60335-2-34 (Compatible with flammable refrigerant)
Harmonics:EN 61000-3-12
Specifications subject to change without notice
CompressorModelCapacity (W)DriverOIL SOLUTIONSOUND SOLUTIONADD
compresor series AGB AGB87FBAMTS11,610 (MT)SDP-220A*400MUTO-A4053N-
compresor series ANB ANB52FVRMT16,500 (ARI)SDP-220A*400MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB52FZKMT16,500 (ARI)SDP-220A*400MUTO-A4053N-
compresor series ANB ANB66FVAMT21,500 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB66FVQMT21,000 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB66FZHMT21,300 (ARI)SDP-140A*400
SDP-220A*400		MUTO-A4053N-
compresor series ANB ANB78FVQMT24,900 (ARI)SDP-220A*400MUTO-A4053NSC00G418B06
9G00C105B02
compresor series ANB ANB78FZHMT25,200 (ARI)SDP-220A*400MUTO-A4053N-
compresor series ANB ANB87FGAMT28,000 (ARI)SDP-220A*400-SC00G418B04
9G00C105B02
compresor series ANB ANB87FVLMT28,000 (ARI)SDP-220A*400-SC00G418B06
9G00C105B02
compresor series ANB ANB87FZKMT28,000 (ARI)SDP-220A*400--
compresor series AVB AVB66FLAMT22,990 (ARI)SDP-220A*400-SC00G418B06
9G00C105B02
compresor series AVB AVB66FT5MT22,990 (ARI)SDP-220A*400--
compresor series AVB AVB78FLBMT27,300 (ARI)SDP-220A*400MUTO-A4053NSC00G418B06
9G00C105B02
compresor series AVB AVB78FT5MT27,300 (ARI)SDP-220A*400--
compresor series AVB AVB87FT5MT30,400 (ARI)SDP-220A*400--

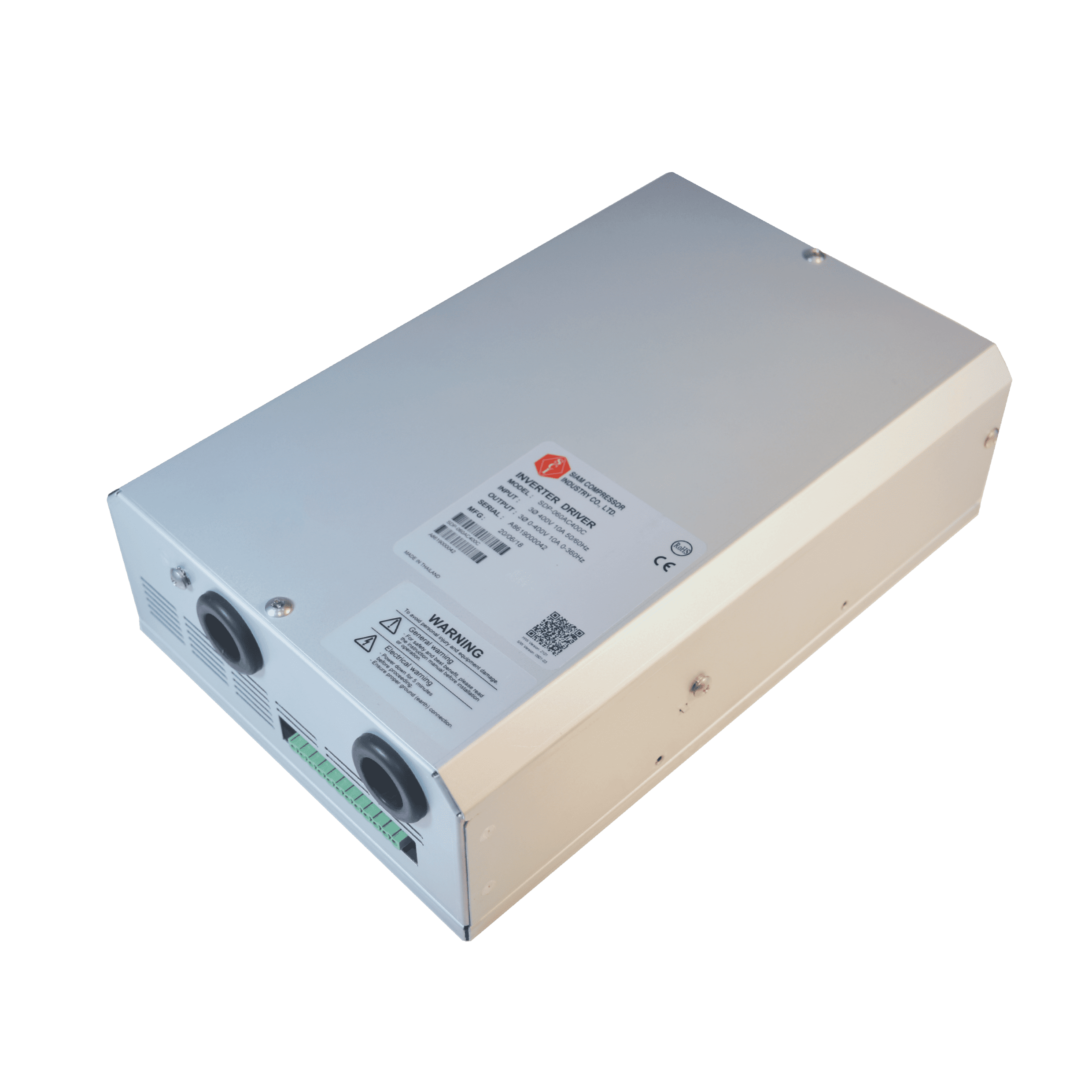

Dimension Inverter Driver

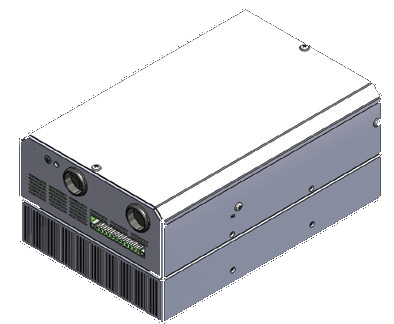

Air cooled with DC Fan
Air cooled with DC fan of driver inverter compressor
Specifications
MODEL : Air cooled with DC Fan
Length (mm.) : 302
Width (mm.) : 198
Height (mm.) : 133
WEIGHT (kg.) : 4.7

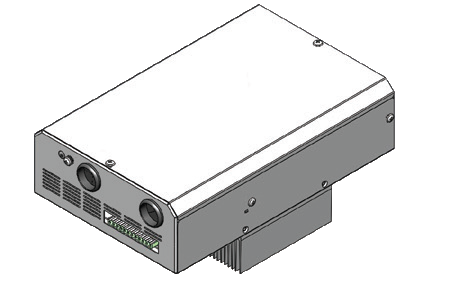

Air cooled
Air cooled of driver inverter compressor
Specifications
MODEL : Air cooled
Length (mm.) : 302
Width (mm.) : 198
Height (mm.) : 133
WEIGHT (kg.) : 3.9

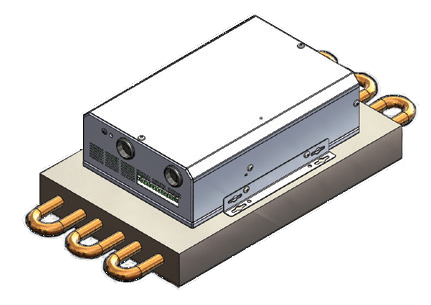

Liquid Cooling
Liquid cooling of driver inverter compressor
Specifications
MODEL : Liquid Cooling
Length (mm.) : 302
Width (mm.) : 198
Height (mm.) : 90
WEIGHT (kg.) : 3.3

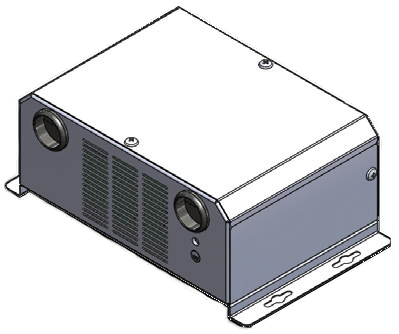

Noise Filter
Noise filter of driver inverter compressor
Specifications
MODEL : Noise Filter
Length (mm.) : 142
Width (mm.) : 198
Height (mm.) : 90
WEIGHT (kg.) : 1.33
AD Reactors
AD Reactors of driver inverter compressor
Specifications
MODEL : AD Reactors
Length (mm.) : 112
Width (mm.) : 86
Height (mm.) : 74
WEIGHT (kg.) : 2.5
DC Reactors
DC Reactors of driver inverter compressor
Specifications
MODEL : DC Reactors
Length (mm.) : 86
Width (mm.) : 76
Height (mm.) : 65
WEIGHT (kg.) : 2.9

What would you like to do now ?

Contact Us

We collect cookies for personal data management and website improvement. You can read more information about our policy on page Cookie Policy and Privacy Policy Accept
