NEW GENERATION Oil solution Features

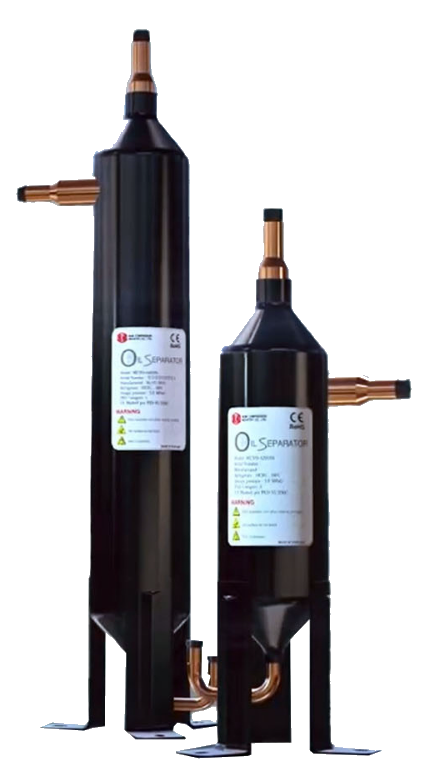

muto-oil separator
As crucial as oxygen to living things, compressor oil must be supplied sufficiently and managed effectively
"MUTO-Oil Separator", the technology patented to SCI, is excellent in crafted design and precise performance for optimum complement with SCI compressor This patented multi-tube technology will help in the separation of oil from refrigerant and manage external-oil return in real time with highest efficiency at 99% oil separation
The MUTO oil separator technology also eliminates the need for oil pre-charging as well as require less oil refill in the system, allowing you to maximize the unit"s efficiency
OIL SEPARATION EFFICIENCY BY CENTRIFUGAL FORCE
99%
USE FRIENDLY
NO PRECHARGE OIL
PATENTED
MULTI-TUBE
FLEXIBLE
EXTERNAL OIL RETURN MANAGEMENT
Multi-tube oil separator (patented to SCI) changes the oil flow from turbulent flow to laminar flow. It also enlarges the size of oil droplets. These two increase the efficiency of centrifugal separation up to 99%. Multi-tube oil separator is used for VRF, CCAC and refrigerant system for use with HFC and HCFC refrigerants.

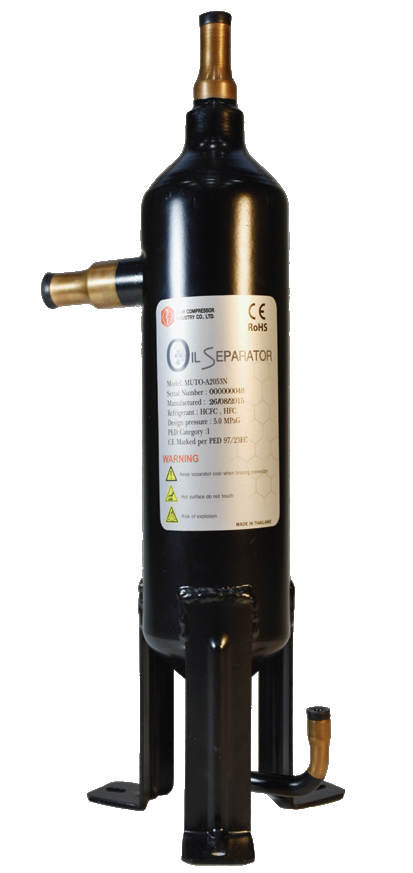

MUTO-A2053N
| REFRIGERANT | : | HCFC, HFC, HFO |
| Height | : | 362 |
| WEIGHT | : | 1.5 |
| For Inverter compressor | : | ≤ 33 (CC) |
| For Fix Speed Compressor | : | ≤ 66 (CC) |
| Type | : | Centrifugal force oil separator |
| Compressor | Model | Capacity (W) | Driver | OIL SOLUTION | SOUND SOLUTION | ADD |
|---|---|---|---|---|---|---|

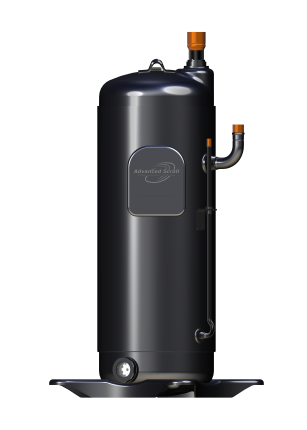

| AGB33FAAMTS | 4,060 (MT) | SDP-105A*400 | MUTO-A2053N | - | |
|
| AGB33FABMTS | 4,060 (MT) | SDP-062B*230 | MUTO-A2053N | - | |
|
| AGB42FAAMTS | 5,510 (MT) | SDP-105A*400 | MUTO-A2053N | - | |
|
| AGB42FABMTS | 5,510 (MT) | SDP-062B*230 | MUTO-A2053N | - | |

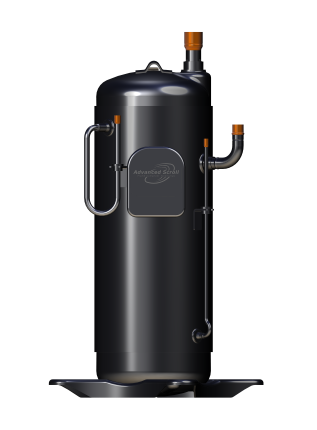

| ANB33FBSMT | 10,800 (ARI) | SDP-062B*230 | MUTO-A2053N | SC00G218B02 9G00C131B01 | |
|
| ANB33FJSMT | 10,600 (ARI) | - | MUTO-A2053N | - | |
|
| ANB33FKJMT | 10,700 (ARI) | SDP-105A*400 | MUTO-A2053N | SC00G218B02 9G00C131B01 | |
|
| ANB33FNJMT | 10,600 (ARI) | - | MUTO-A2053N | SC00G218B01 9G00C104B01 | |
|
| ANB42FBSMT | 13,700 (ARI) | - | MUTO-A2053N MUTO-A4053N | SC00G218B02 9G00C131B01 | |

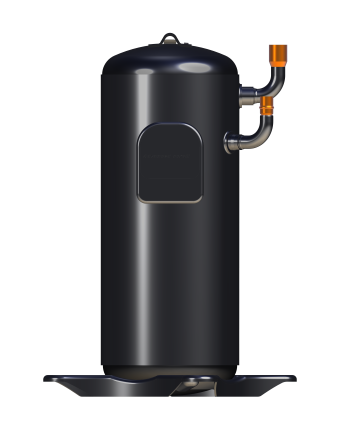

| APB33FAAMT | 5,100 (Heat Pump) | SDP-060A*400 | MUTO-A2053N | - | |

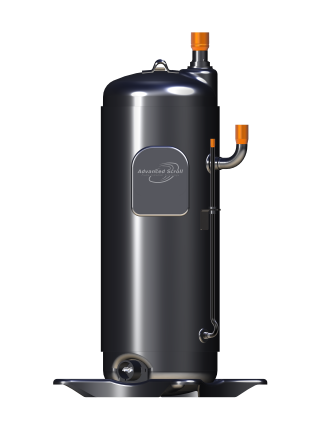

| AVB33FACMT | 10,900 (ARI) | SDP-105A*400 | MUTO-A2053N | - | |
|
| AVB33FAEMT | 11,000 (ARI) | SDP-062B*230 | MUTO-A2053N | SC00G218B01 9G00C104B01 | |
|
| AVB33FJAMT | 11,100 (ARI) | SDP-062B*230 | MUTO-A2053N | - | |

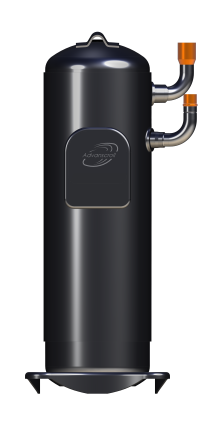

| DNB22FAFMT | 7,000 (ARI) | SDP-060A*400 | MUTO-A2053N | SC00G421B04 9G00C106B02 | |
|
| DNB28FAAMT | 9,030 (ARI) | SDP-042P*230 SDP-062B*230 | MUTO-A2053N | SC00G421B04 9G00C106B02 | |
|
| DNB28FAEMT | 9,030 (ARI) | SDP-060A*400 | MUTO-A2053N | SC00G421B04 9G00C106B02 | |

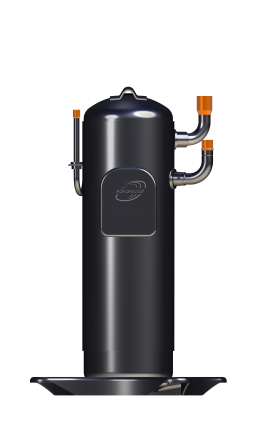

| DNK28FBAMT | 8,950 (ARI) | SDP-062B*230 | MUTO-A2053N | SC00G421B03 9G00C106B01 | |

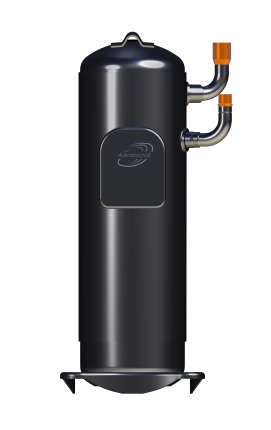

| DVB28FBAMT | 9,700 (ARI) | - | MUTO-A2053N | SC00G421B04 9G00C106B02 | |

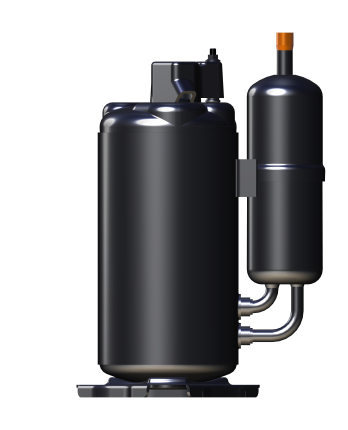

| SNB092FQAMT | 2,510 (A/C) | SDP-042P*230 | MUTO-A2053N | - | |
|
| SNB130FGBMT | 3,630 (A/C) | SDP-042P*230 | MUTO-A2053N | - | |
|
| SNB172FEKMT | 4,830 (A/C) | SDP-042P*230 | MUTO-A2053N | - | |
|
| SNB220FBAMT | 6,840 (ASRE-T) | SDP-105A*400 | MUTO-A2053N | SC00G241G01 9G00C102G01 | |
|
| SNB220FBGMT | 6,840 (ASRE-T) | SDP-062B*230 | MUTO-A2053N | SC00G241G01 9G00C102G01 | |

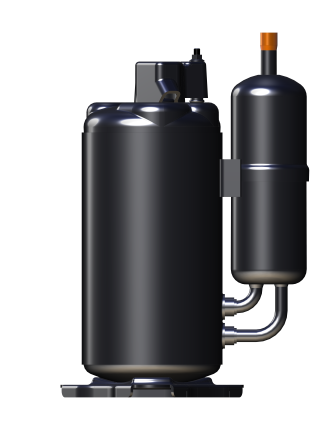

| SPB172FCKMT | 2,510 (Heat Pump) | SDP-042P*230 | MUTO-A2053N | - | |
| SVB220FBAMT | 7,130 (ARI) | SDP-060A*400 SDP-105A*400 | MUTO-A2053N | SC00G241G01 9G00C102G01 | |

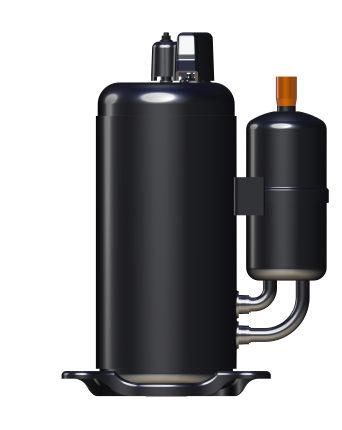

| TNB220FLHMT | 7,130 (ASRE-T) | SDP-042P*230 SDP-062B*230 | MUTO-A2053N | SC00G242G01 9G00C103G01 | |
|
| TNB220FSGMT | 7,130 (ASRE-T) | SDP-042P*230 | MUTO-A2053N | - | |
|
| TNB306FPGMT | 9,880 (ASRE-T) | SDP-062B*230 | MUTO-A2053N | SC00G242G01 9G00C103G01 | |
| TPB306FCHMT | 4,750 (Heat Pump) | SDP-042P*230 | MUTO-A2053N | SC00G242G01 9G00C103G01 | |

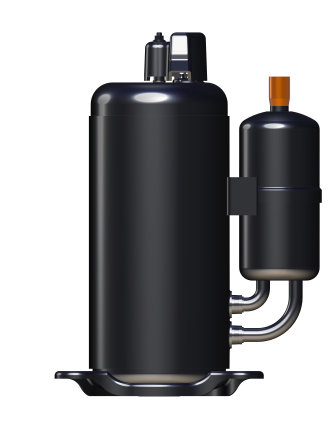

| TVB306FPGMT | 9,930 (ARI) | SDP-062B*230 | MUTO-A2053N | SC00G242G01 9G00C103G01 |

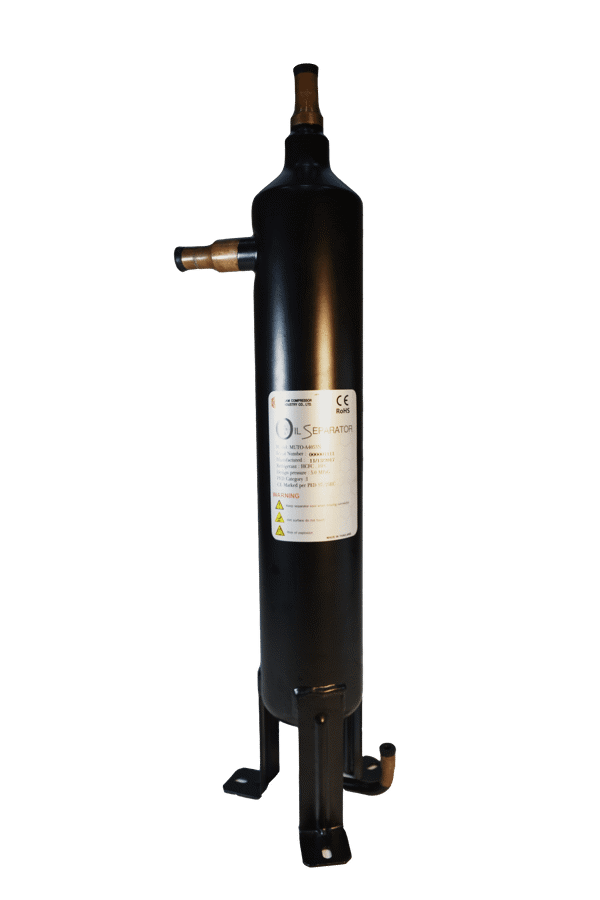

MUTO-A4053N
| REFRIGERANT | : | HCFC, HFC, HFO |
| Height | : | 522 |
| WEIGHT | : | 2.2 |
| For Inverter compressor | : | 33 - 78 (CC) |
| For Fix Speed Compressor | : | 66 - 128 (CC) |
| Type | : | Centrifugal force oil separator |
| Compressor | Model | Capacity (W) | Driver | OIL SOLUTION | SOUND SOLUTION | ADD |
|---|---|---|---|---|---|---|
|
| AGB52FAAMTS | 6,760 (MT) | SDP-105A*400 | MUTO-A4053N | - | |
|
| AGB52FABMTS | 6,760 (MT) | - | MUTO-A4053N | - | |
|
| AGB66FBAMTS | 8,770 (MT) | SDP-105A*400 | MUTO-A4053N | - | |
|
| AGB66FBBMTS | 8,770 (MT) | SDP-062B*230 | MUTO-A4053N | - | |
|
| AGB78FBAMTS | 10,400 (MT) | SDP-140A*400 | MUTO-A4053N | - | |
|
| AGB78FBBMTS | 10,400 (MT) | - | MUTO-A4053N | - | |
|
| AGB87FBAMTS | 11,610 (MT) | SDP-220A*400 | MUTO-A4053N | - | |
|
| AGB87FBBMTS | 11,610 (MT) | - | MUTO-A4053N | - | |
|
| ANB42FBSMT | 13,700 (ARI) | - | MUTO-A2053N MUTO-A4053N | SC00G218B02 9G00C131B01 | |
|
| ANB42FJWMT | 12,800 (ARI) | - | MUTO-A4053N | - | |
|
| ANB42FQQMT | 12,900 (ARI) | - | MUTO-A4053N | SC00G218B02 9G00C131B01 | |
|
| ANB42FUBMT | 13,700 (ARI) | SDP-105A*400 | MUTO-A4053N | - | |
|
| ANB42FUDMT | 13,700 (ARI) | SDP-062B*230 | MUTO-A4053N | - | |
|
| ANB52FKFMT | 17,200 (ARI) | SDP-140A*400 | MUTO-A4053N | SC00G218B02 9G00C131B01 | |
|
| ANB52FKKMT | 17,100 (ARI) | - | MUTO-A4053N | SC00G218B02 9G00C131B01 | |
|
| ANB52FKPMT | 17,200 (ARI) | SDP-105A*400 SDP-140A*400 | MUTO-A4053N | SC00G218B02 9G00C131B01 | |
|
| ANB52FVRMT | 16,500 (ARI) | SDP-220A*400 | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| ANB52FZKMT | 16,500 (ARI) | SDP-220A*400 | MUTO-A4053N | - | |
|
| ANB66FUFMTS | 21,800 (ARI) | SDP-140A*400 | MUTO-A4053N | - | |
|
| ANB66FUJMTS | 4,900 (LT) | SDP-140A*400 | MUTO-A4053N | - | |
|
| ANB66FVAMT | 21,500 (ARI) | SDP-140A*400 SDP-220A*400 | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| ANB66FVQMT | 21,000 (ARI) | SDP-140A*400 SDP-220A*400 | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| ANB66FZHMT | 21,300 (ARI) | SDP-140A*400 SDP-220A*400 | MUTO-A4053N | - | |
|
| ANB78FVCMT | 25,400 (ARI) | - | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| ANB78FVQMT | 24,900 (ARI) | SDP-220A*400 | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| ANB78FZHMT | 25,200 (ARI) | SDP-220A*400 | MUTO-A4053N | - | |
|
| AVB36FJBMT | 12,100 (ARI) | SDP-062B*230 | MUTO-A4053N | - | |
|
| AVB52FBDMT | 17,940 (ARI) | - | MUTO-A4053N | - | |
|
| AVB78FLBMT | 27,300 (ARI) | SDP-220A*400 | MUTO-A4053N | SC00G418B06 9G00C105B02 | |
|
| DNB36FANMT | 11,600 (ARI) | SDP-060A*400 | MUTO-A4053N | SC00G421B04 9G00C106B02 | |
|
| DNK36FAAMT | 11,640 (ARI) | SDP-062B*230 | MUTO-A4053N | SC00G421B03 9G00C106B01 | |
|
| DVB36FCBMT | 12,400 (ARI) | SDP-062B*230 | MUTO-A4053N | SC00G421B04 9G00C106B02 |
